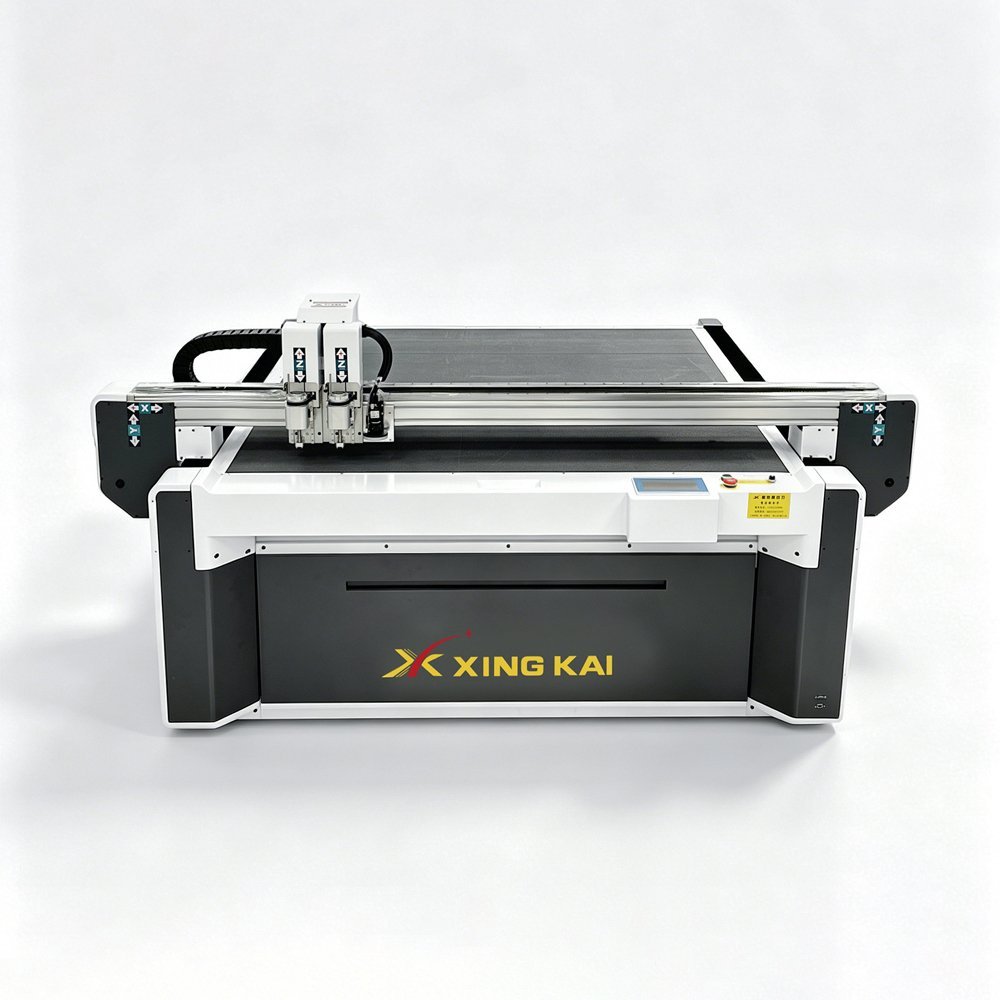

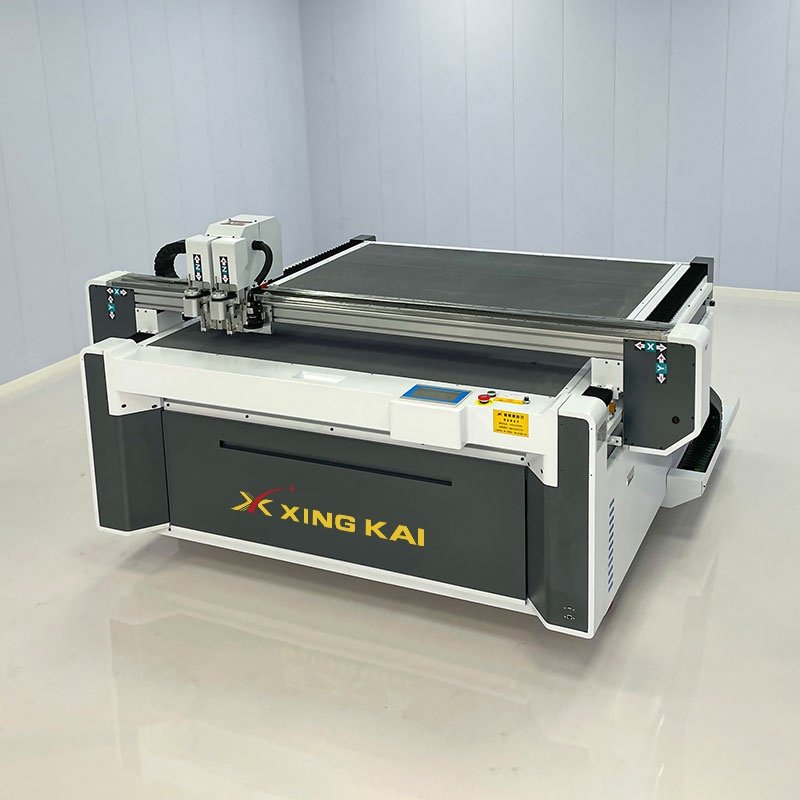

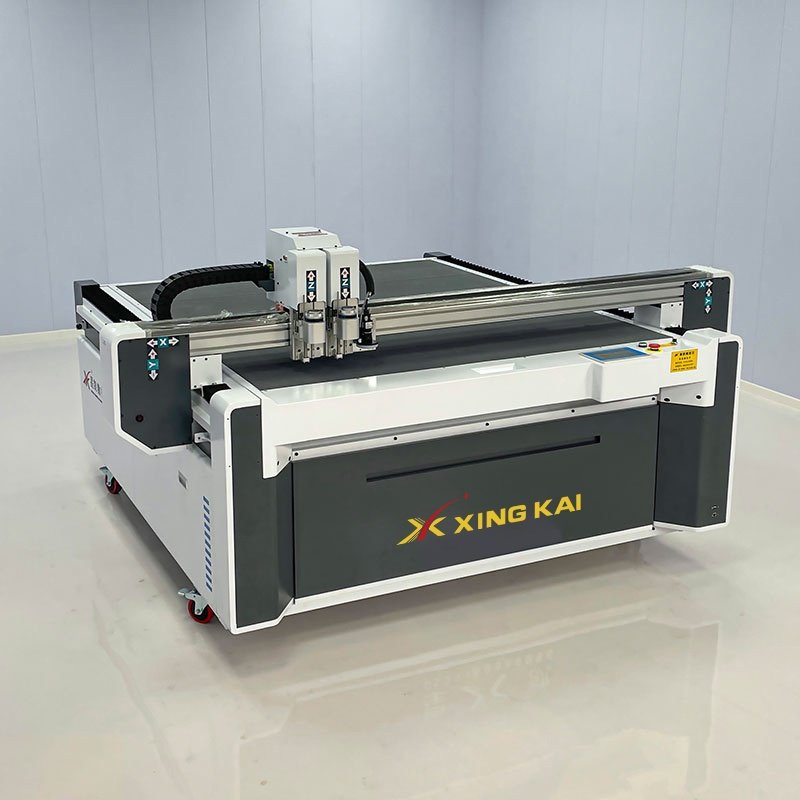

XK1625 Genuine Leather Cutting Machine with Oscillating Knife
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 2500mm
Rating
★★★★★ 4.8 / 5 (49 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai leather oscillating knife cutting machines are industrial CNC cutting systems specially designed for the automated cutting of genuine leather, synthetic leather, and leather composite materials.
They deliver high-precision cutting for cowhide, sheepskin, goatskin, suede, nubuck, PU leather, PVC leather, microfiber leather, bonded leather, upholstery leather, automotive leather, shoe upper leather, and laminated leather materials. Depending on production requirements, the machines can also process adhesive-backed leather and other flexible leather composites.
Advantages of the Industrial Leather Cutting Machine
High-speed motion control and suitable cutting tools improve leather cutting efficiency and shorten production cycles.
Digital cutting follows imported designs to produce accurate contours and consistent dimensions.
Intelligent nesting helps reduce leather waste while respecting pattern direction.
No cutting dies are required. Shapes and sizes can be changed by updating the cutting file.
Vacuum adsorption holds suitable leather flat during cutting and reduces manual handling.
Automated cutting reduces repetitive work. Optional marking and punching tools support additional processes.
Blade cutting avoids heat-related burning and smoke. Edge quality depends on the leather and tool selection.
Suitable for genuine leather, split leather, suede, nubuck, PU leather, and selected composite leather materials, subject to testing.
Suitable for samples, customized orders, and small-batch production in footwear, bags, upholstery, and automotive interiors.
Precision gear racks, linear guides, and CNC control support smooth, stable operation.

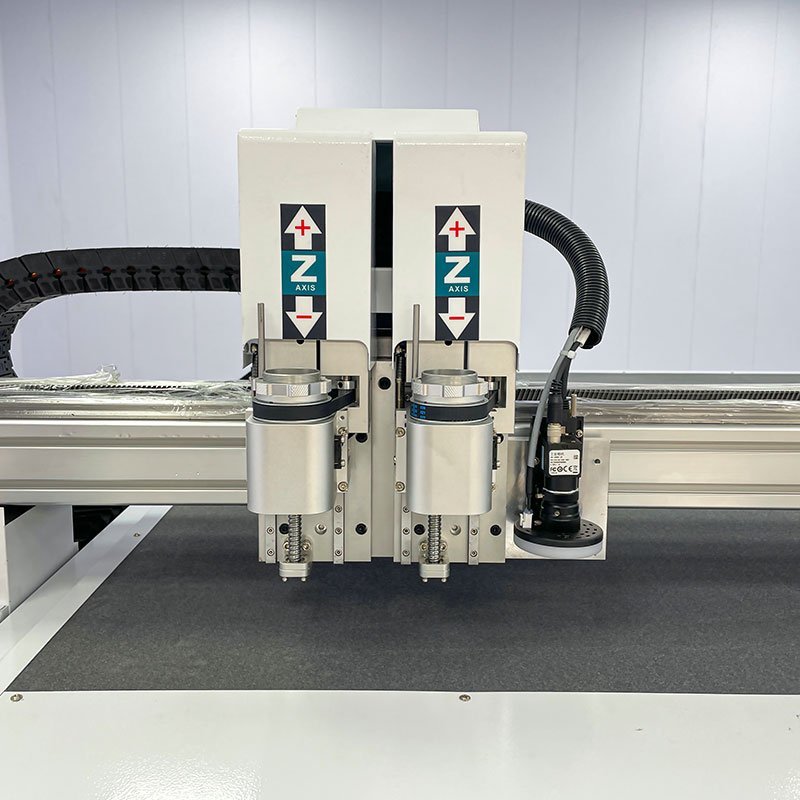

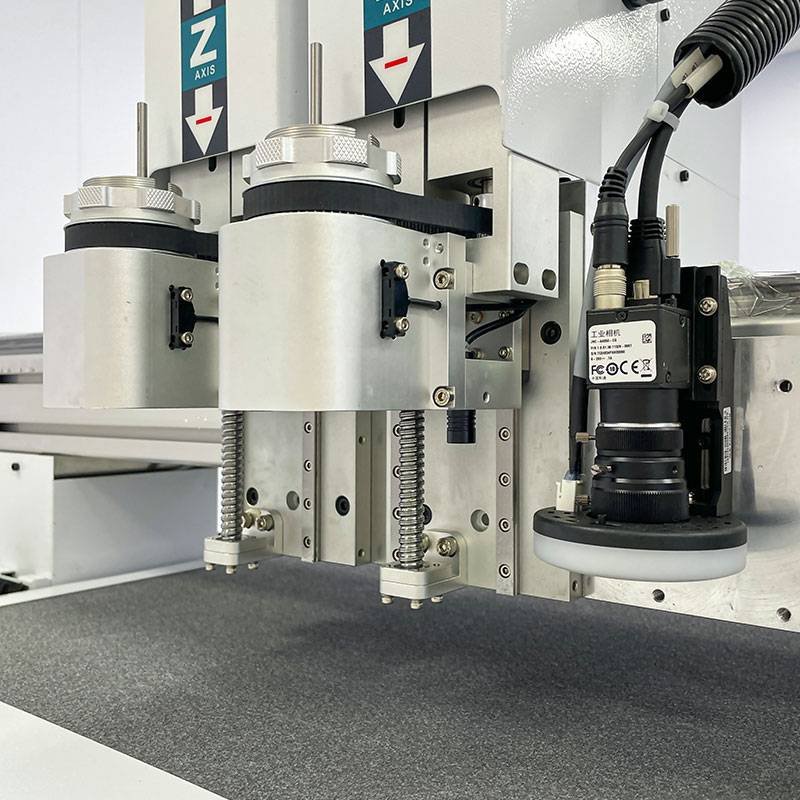

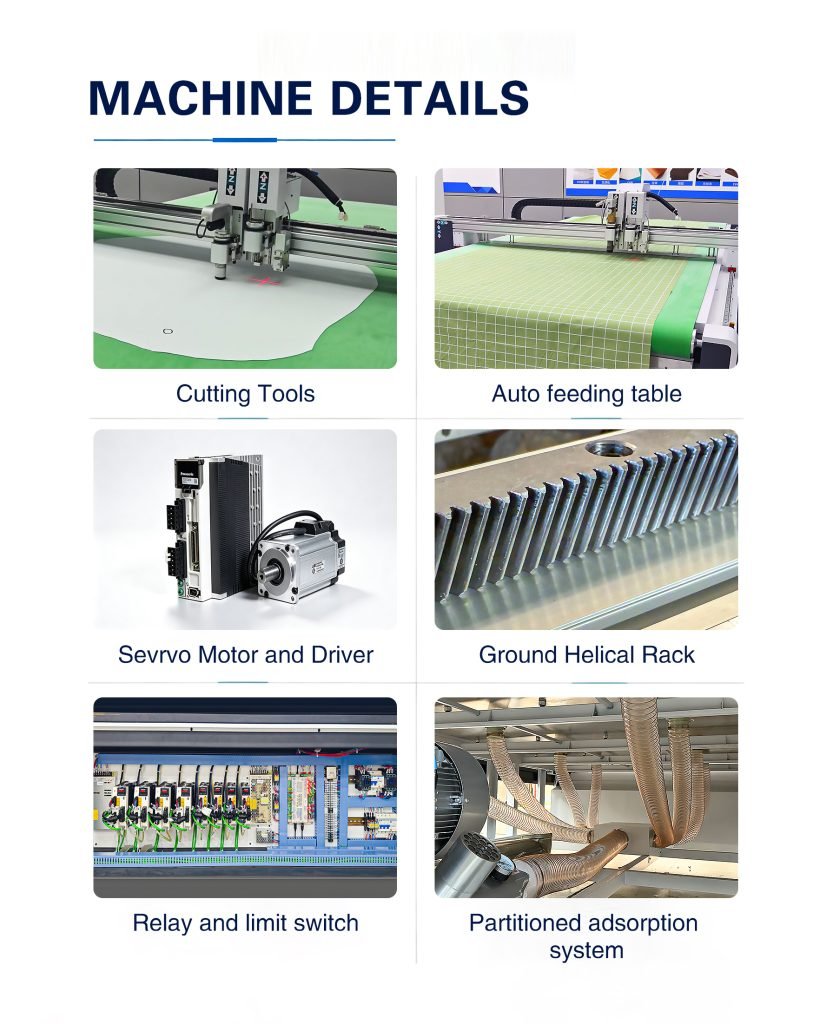

Leather Cutting Machine Details and Key Components
Fan equipment
Multilingual operating system
Oil pump
Rack
Multiple blade combinations
Servo driver
Felt
Aviation aluminum honeycomb panel
Leather Cutting Machine Specifications
Customizable working sizes and cutting configurations are available upon request.
| Parameter | Specification |
|---|---|
| Cutting Materials | Genuine leather, PU leather, synthetic leather, microfiber leather, suede and composite leather |
| Cutting Speed | ≤1800 mm/s (actual speed depends on the material and cutting pattern) |
| Cutting Thickness | ≤20 mm, depending on material hardness and density |
| Material Fixing Method | Vacuum adsorption with reverse air blowing |
| Cutting Accuracy | ±0.1 mm |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V ±10%, 50Hz |
| Transmission System | Servo motor drive and precision linear guide rails |
| Working Environment | Temperature: 5°C–35°C; Humidity: 35%–75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Oscillating knife |
| Optional Tools | Pneumatic oscillating knife, rotary tool, punching tool, marking pen and kiss-cut tool |
| Optional Functions | Automatic nesting, projection positioning, CCD camera recognition and leather defect recognition |
Available Models and Dimensions
| Model | Effective Cutting Area (L × W) | Machine Dimensions (L × W) | Package Size (L × W) |
|---|---|---|---|
| 7010 | 1000 × 700 mm | 1700 × 1380 mm | 1850 × 1500 mm |
| 1615 | 1500 × 1600 mm | 2320 × 2500 mm | 2470 × 2620 mm |
| 1625 | 2500 × 1600 mm | 3350 × 2500 mm | 3500 × 2560 mm |
| 1825 | 2500 × 1800 mm | 3350 × 2700 mm | 3750 × 2290 mm |
| 1840 | 4000 × 1800 mm | 4800 × 2700 mm | 5200 × 2290 mm |
| 2025 | 2500 × 2000 mm | 3350 × 2900 mm | 1900 × 3100 mm, disassembled |
| 2030 | 3000 × 2000 mm | 3950 × 2900 mm | 2200 × 2900 mm, disassembled |
Applications of Leather Cutting Machines
Suitable for cutting shoe uppers, tongues, insoles, reinforcement pieces, decorative parts, and leather components in different styles and sizes.
Cuts bag panels, straps, handles, pockets, reinforcement pieces, case components, and decorative leather parts.
Suitable for cutting seat leather, door-panel coverings, steering wheel components, headrests, armrests, dashboard leather, and other interior trim parts.
Processes sofa leather, chair upholstery, cushion covers, backrest panels, armrest pieces, and customized furniture components.
Cuts wallets, belts, watch straps, cases, covers, small accessories, and personalized leather products.
Suitable for cutting gloves, protective pads, sports equipment coverings, saddle components, and selected leather protective parts.
Ideal for prototypes, replacement parts, personalized products, small-batch orders, and production involving frequent style or size changes.
Genuine Leather Cutting Machine Applicable Materials
Genuine Leather

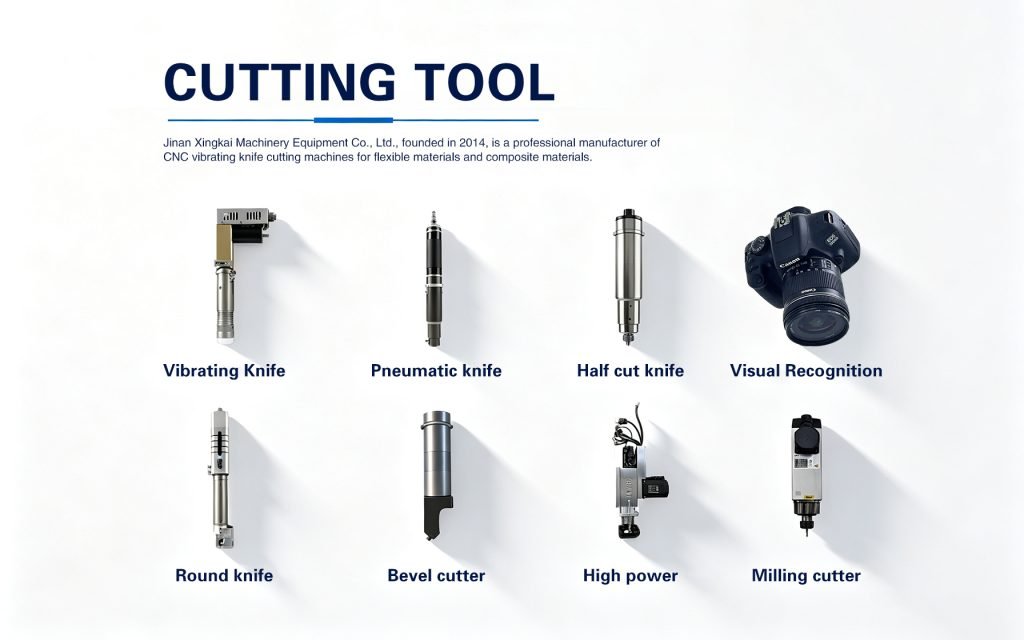

Leather Cutting Machine Optional Blades and Accessories
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Customer Visits and Recognition
Why Choose a CNC Leather Oscillating Knife Cutting Machine?
Leather can stretch, shift, or deform during manual cutting. Genuine leather also has irregular outlines and natural defects such as scars, holes, wrinkles, and color differences. Manual nesting depends heavily on operator experience, making it difficult to maintain stable material utilization and consistent part dimensions.
Traditional die cutting requires a separate die for every product style and size. This increases tooling costs, extends sample development time, and limits flexibility when manufacturers handle customized products or frequently changing designs.
A CNC leather cutting machine uses vacuum adsorption to stabilize the material and automatically follows the imported design file. The oscillating knife moves rapidly up and down, allowing the machine to cut straight lines, curves, holes, slots, internal contours, and complex irregular shapes accurately.
For natural hides, an optional large-format camera captures the complete leather outline and recognizes defect areas marked by the operator. Intelligent nesting software then arranges parts within usable areas according to part shape, leather quality, grain direction, and production priority. For PU, PVC, and microfiber leather rolls, a conveyor table with automatic feeding supports continuous cutting and reduces repeated manual loading.
Xingkai leather cutting machines use blades for physical cutting. Unlike laser processing, they generate no cutting heat, helping avoid burnt edges, discoloration, smoke, and unpleasant odors. The finished edges are clean and natural, making the machine suitable for leather products with high appearance and assembly requirements.
Why Choose an Oscillating Knife Cutter Instead of a Laser Cutting Machine for Leather?
For genuine leather, PU leather, PVC leather, microfiber leather, and other leather materials, oscillating knife cutting offers several important advantages.
Laser cutting uses heat to burn or melt through the material. When cutting genuine leather, it may produce darkened edges, scorch marks, smoke, and an unpleasant odor. When cutting synthetic leather, heat may cause melting, deformation, discoloration, or fumes depending on the material composition.
An oscillating knife cuts mechanically without generating cutting heat. It helps preserve the original leather color, surface texture, and edge appearance. The cut parts can normally proceed directly to sewing, bonding, or assembly without removing burnt residue.
Compared with manual cutting, the Xingkai digital leather cutting machine automatically reads design files and combines intelligent nesting, vacuum adsorption, visual recognition, marking, punching, and precision cutting. This improves production consistency while reducing manual errors and material waste.
Laser cutting may still be suitable for engraving or selected compatible thin materials. However, oscillating knife cutting is generally a cleaner and more flexible choice for footwear, bags, automotive interiors, furniture upholstery, and leather goods where edge quality and material appearance are important.
How to Choose a Xingkai Leather Cutting Machine

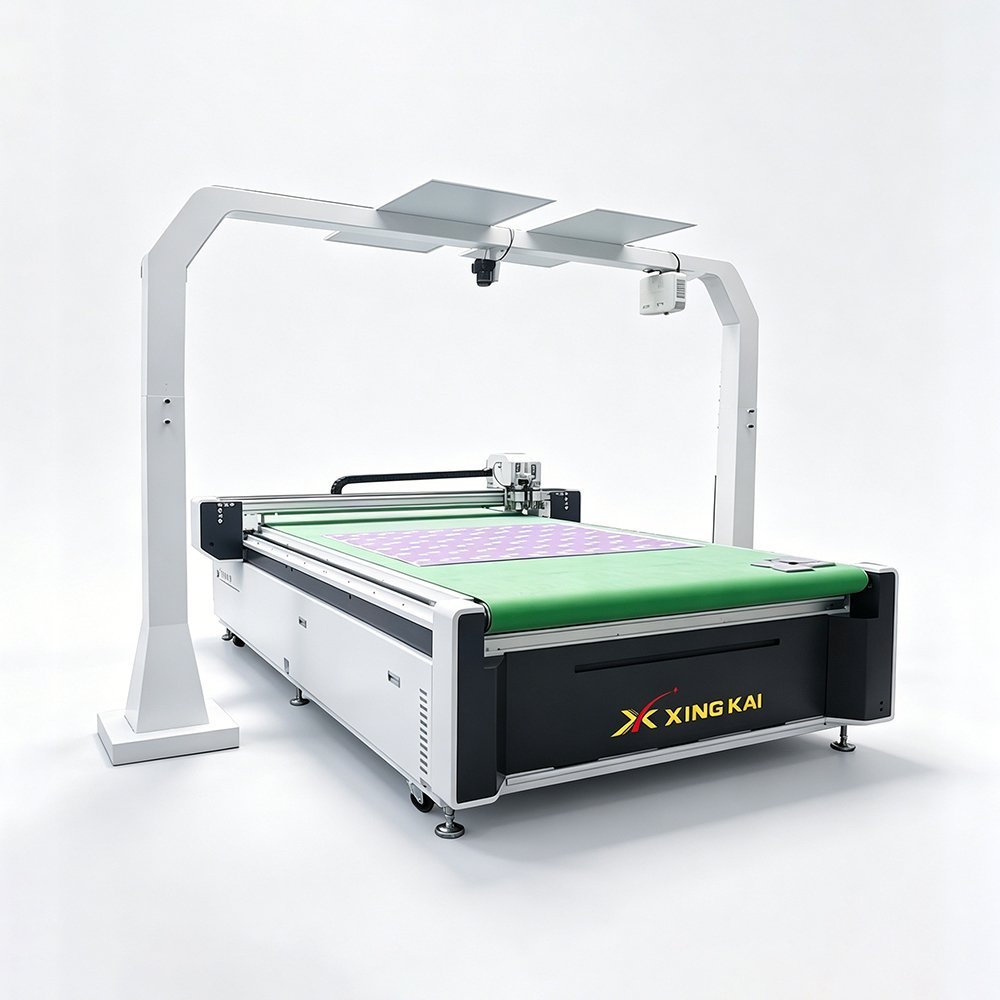

For genuine leather hides with irregular outlines, we recommend a fixed-table digital cutting machine with a large-format camera. The camera captures the full hide shape and marked defects, while intelligent nesting places parts within usable areas.
For PU leather, PVC leather, microfiber leather, and other roll materials, we recommend a conveyor cutting machine with an automatic feeding system. It supports long patterns and continuous batch production while reducing repeated manual loading.
For fixed-size synthetic leather sheets, samples, leather accessories, and small-batch orders, a fixed-table model is compact and flexible.
For common genuine and synthetic leather, an electric oscillating knife normally provides efficient cutting. For thick, dense, hard, or laminated leather, a pneumatic oscillating knife with a suitable blade is recommended.
If the product requires holes, sewing marks, part numbers, or matching references, punching and marking tools can be added. For selected adhesive-backed leather, a half-cut tool may be configured. For printed leather or materials with registration marks, a CCD positioning camera can be selected.
Machine configuration should be based on leather type, thickness, hardness, material format, maximum dimensions, cutting shape, visual recognition requirements, and daily output. Sample testing is recommended before confirming the final configuration.
Frequently Asked Questions
What leather materials can the machine cut?
The machine can process genuine leather, split leather, suede, nubuck, PU leather, and selected composite leather materials. Test cutting is recommended.
Can the machine recognize natural leather outlines and defects?
Optional camera systems can support positioning and selected recognition tasks. The configuration depends on the material surface and production requirements.
Does leather cutting produce smoke or burnt edges?
No. Oscillating knife cutting is mechanical and does not use laser heat.
How is leather kept flat during cutting?
A vacuum adsorption table holds suitable materials flat. Settings are selected according to thickness, surface, and air permeability.
Which design files are supported?
The system supports commonly used DXF and PLT files and can work with standard CAD, pattern-making, and nesting software.
Does the machine require cutting dies?
No. New designs and sizes are imported digitally, without a separate cutting die for each style.
Can I test my leather before purchasing?
Yes. Send material samples and cutting drawings for a test, together with thickness, cutting size, and daily output.
