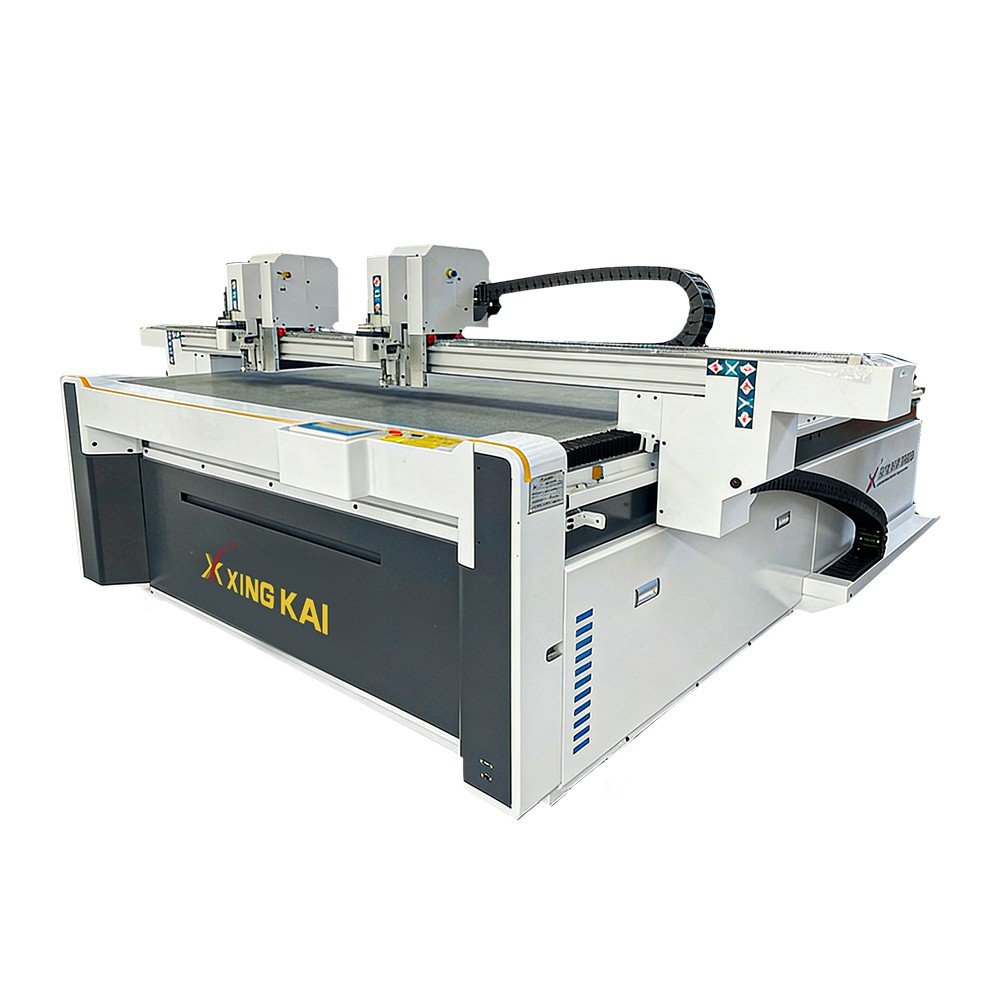

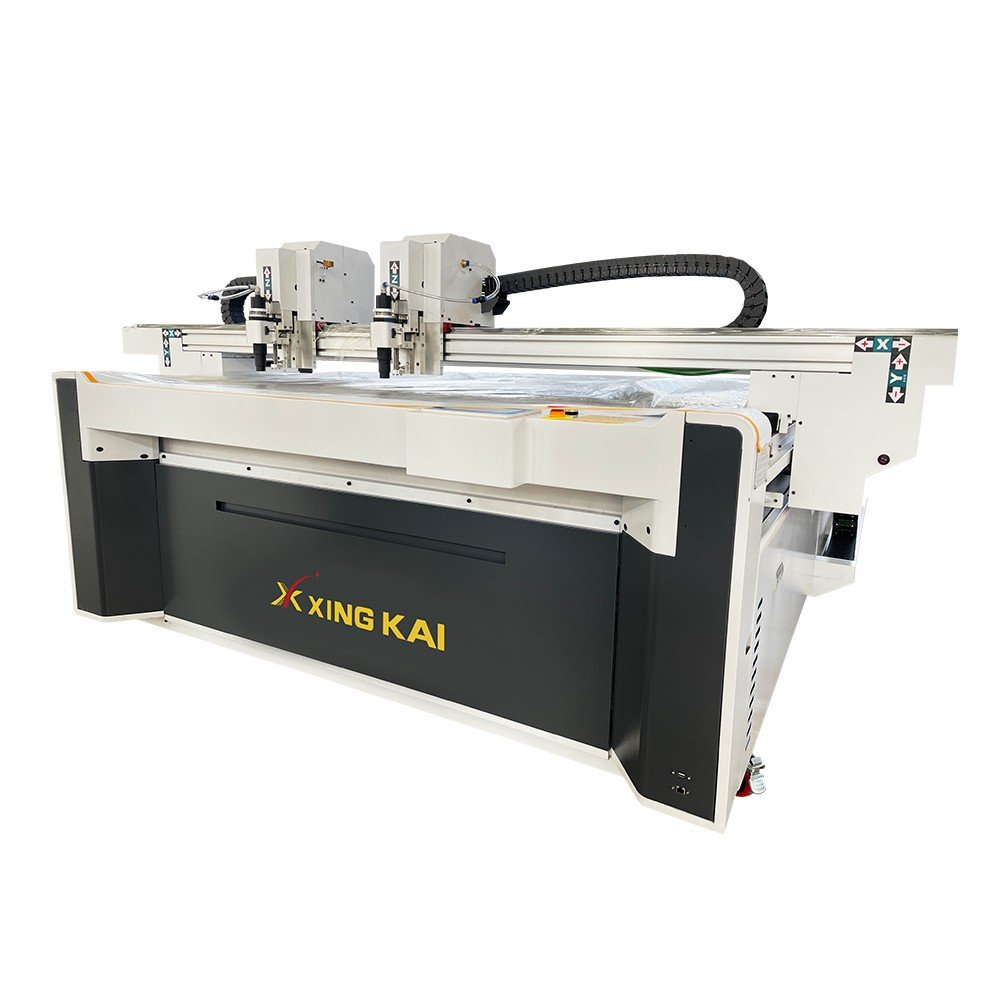

XK1625 1600×2500mm Automatic CNC Oscillating Knife Rubber Gasket Cutting Machine
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 2500mm
Rating
★★★★★ 4.7 / 5 (11 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai rubber gasket cutting machines are industrial CNC oscillating knife cutting systems developed for digital production of sealing rings, flange gaskets, valve gaskets, equipment seals, pipe gaskets, washers, and customized rubber components.
The machine can process NBR, EPDM, SBR, natural rubber, silicone rubber, neoprene, foam rubber, fabric-reinforced rubber, and selected rubber composite sheets. It integrates intelligent nesting, vacuum adsorption, CNC motion control, punching, marking, and contour cutting in one digital workflow. No cutting dies are required.
These machines typically consist of intelligent nesting software, a CNC control system, a vacuum adsorption table, an oscillating knife cutting tool, and optional punching, marking, or automatic feeding systems. They support a fully digital workflow from design file import and automatic nesting to hole cutting, marking, and precision contour cutting.
Xingkai rubber gasket cutting machines are widely used in industrial sealing, automotive parts, pumps and valves, pipeline components, machinery maintenance, and customized gasket production. Depending on the application, they may also be referred to as CNC gasket cutting machines, automatic rubber gasket cutters, digital seal cutting machines, or oscillating knife gasket cutters.
Advantages of the Automatic Rubber Gasket Cutting Machine
High-speed motion control and suitable cutting tools improve rubber gasket cutting efficiency and shorten production cycles.
Digital cutting follows imported designs to create accurate contours and consistent dimensions.
Intelligent nesting optimizes pattern layouts to reduce material waste.
No cutting dies are required. Shapes and sizes can be changed by updating the cutting file.
Automatic feeding supports roll or sheet processing and reduces manual handling.
Optional marking, punching, and cutting tools support additional production processes.
Blade cutting avoids heat-related melting and burnt edges. Edge quality depends on the material and tool selection.
Suitable materials and thicknesses should be confirmed through sample testing.
Suitable for prototypes, customized orders, and small-batch production of industrial components.
Precision gear racks, linear guides, and CNC control support smooth, stable operation.
Rubber Gasket Cutting Machine Details and Key Components
Fan equipment
Multilingual operating system
Oil pump
Rack
Multiple blade combinations
Servo driver
Felt
Aviation aluminum honeycomb panel
Rubber Gasket Cutting Machine Specifications
Customizable working sizes and cutting configurations are available upon request.
| Parameter | Specification |
|---|---|
| Cutting Materials | NBR, EPDM, SBR, natural rubber, silicone rubber, neoprene, foam rubber, fabric-reinforced rubber and rubber gasket sheets |
| Cutting Speed | Up to 1800 mm/s; actual speed depends on material hardness, thickness and cutting pattern |
| Cutting Thickness | Up to 20 mm; actual capacity depends on rubber hardness, density and reinforcement structure |
| Material Fixing Method | Zoned vacuum adsorption with reverse air blowing |
| Cutting Accuracy | +/-0.1 mm under suitable material and operating conditions |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V +/-10%, 50Hz |
| Transmission System | Servo motor drive, precision gear rack and industrial linear guide rails |
| Working Environment | Temperature: 5°C-35°C; Humidity: 35%-75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Oscillating knife |
| Optional Tools | Pneumatic oscillating knife, punching tool, marking pen and kiss-cut tool |
| Optional Functions | Automatic nesting, projection positioning, camera recognition and automatic feeding |
Rubber Gasket Cutting Machine Models and Dimensions
| Model | Effective Cutting Area (L x W) | Machine Dimensions (L x W) | Package Size (L x W) |
|---|---|---|---|
| 7010 | 1000 x 700 mm | 1700 x 1380 mm | 1850 x 1500 mm |
| 1615 | 1500 x 1600 mm | 2320 x 2500 mm | 2470 x 2620 mm |
| 1625 | 2500 x 1600 mm | 3350 x 2500 mm | 3500 x 2560 mm |
| 1825 | 2500 x 1800 mm | 3350 x 2700 mm | 3750 x 2290 mm |
| 1840 | 4000 x 1800 mm | 4800 x 2700 mm | 5200 x 2290 mm |
| 2025 | 2500 x 2000 mm | 3350 x 2900 mm | 1900 x 3100 mm, disassembled |
| 2030 | 3000 x 2000 mm | 3950 x 2900 mm | 2200 x 2900 mm, disassembled |
Application Industries for Rubber Gasket Cutting Machines
Suitable for producing flange gaskets, sealing rings, washers, valve gaskets, pipe gaskets, and customized sealing components.
Processes different rubber materials and gasket sizes for machinery, pipelines, pumps, valves, and maintenance applications.
Cuts rubber seals, pads, sound-insulation parts, protective components, and vehicle-specific gasket products.
Useful for making replacement gaskets and low-volume parts directly from digital drawings.
Suitable for prototypes, customized orders, mixed sizes, and frequently changing designs.
Produces flange gaskets, valve seals, pipe gaskets, and equipment-specific sealing components.
Suitable for matched gasket sets, protective pads, mounting seals, and replacement components.
Rubber Gasket Cutting Machine Applicable Materials
Suitable for rubber sheets, gasket materials, NBR, EPDM, silicone rubber, neoprene, cork-rubber and selected composite sheets, subject to material testing.
Optional Blades and Accessories for Rubber Gasket Cutting Machines
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Customer Recognition for Rubber Gasket Cutting Machines
Why Choose a CNC Rubber Gasket Cutting Machine?
Rubber gaskets often contain circles, narrow sealing edges, bolt holes, internal contours, slots, and irregular profiles. Manual cutting is slow and makes it difficult to maintain consistent dimensions across repeated parts.
Traditional die cutting requires a separate die for each gasket size and design. A CNC rubber gasket cutting machine reads digital files directly, allowing manufacturers to change dimensions and patterns without producing new dies. This reduces tooling cost and shortens sample-development time.
Vacuum adsorption holds the sheet flat while the oscillating knife follows the imported path. Intelligent nesting arranges multiple gasket parts according to sheet size and geometry, helping reduce offcuts and improve material utilization.
Why Choose an Oscillating Knife Cutter Instead of a Laser Cutting Machine for Rubber Gaskets?
Laser cutting uses heat to melt or burn through materials. When cutting rubber, silicone, neoprene, and reinforced gasket sheets, heat may cause melted edges, deformation, smoke, strong odors, or changes to the sealing surface.
An oscillating knife cuts mechanically without heat. It helps preserve the original material structure and produces clean edges suitable for sealing, assembly, and installation. Digital cutting also allows manufacturers to change gasket shapes without producing new dies.
Laser processing may remain suitable for certain compatible materials after safety evaluation. For most flexible rubber gasket sheets, oscillating knife cutting provides a cleaner and more flexible production method.
How to Choose a Rubber Gasket Cutting Machine
For standard NBR, EPDM, silicone, neoprene, and soft rubber gasket sheets, an electric oscillating knife is normally suitable. Thick, hard, dense, or fabric-reinforced rubber may require a pneumatic oscillating knife.
If the gasket contains many repeated holes, add a punching tool. For adhesive-backed rubber, select a kiss-cut tool. Machine size and vacuum configuration should be selected according to sheet dimensions, hardness, thickness, cutting pattern, and daily production.
For compatible roll materials and continuous orders, a conveyor cutting machine with automatic feeding is recommended. For fixed sheets, samples, and small batches, a fixed-table model is compact and flexible.
If the product requires part numbers, installation references, or matching marks, a marking pen can be added. Projection or camera positioning can be selected for special placement requirements.
The final configuration should be confirmed after testing the customer’s actual rubber because hardness, elasticity, reinforcement, and surface friction directly affect cutting performance.
Rubber Gasket Cutting Machine FAQ
What rubber gasket materials can the machine cut?
It can cut NBR, EPDM, SBR, silicone rubber, neoprene, natural rubber, foam rubber, fabric-reinforced rubber, and selected composite gasket sheets.
What is the maximum cutting thickness?
Suitable rubber materials can be cut up to approximately 20 mm. Actual capacity depends on hardness, density, reinforcement, blade length, and required edge quality.
Can the machine cut internal holes?
Yes. It can cut inner circles, bolt holes, slots, and irregular internal contours. A punching tool can be added for suitable repeated holes.
Can the machine cut adhesive-backed rubber?
Yes. A kiss-cut tool can cut the upper rubber layer while retaining the backing liner. The blade depth and pressure should be tested with the actual material.
Does rubber gasket cutting produce smoke or burnt edges?
No. The oscillating knife cuts mechanically without laser heat, helping avoid melted edges, smoke, scorch marks, and heat deformation.
How does the machine keep rubber flat during cutting?
The vacuum adsorption table holds the rubber sheet flat and secure. Vacuum zones can be adjusted according to material size, thickness, and permeability.
Can the machine cut multiple layers of rubber?
Small-batch multilayer cutting is possible for suitable materials. The actual result depends on total compressed thickness, surface friction, hardness, and required accuracy.
Which design files does the machine support?
The system supports standard DXF and HPGL files and can work with compatible CAD and nesting software.
Does the machine require cutting dies?
No. Gasket drawings are imported as digital files, so different sizes and shapes can be produced without new dies.
Can the machine punch holes and add marks?
Yes. Optional punching and marking tools can produce suitable holes, part numbers, assembly references, and positioning marks.
How often should the blade be replaced?
Blade life depends on rubber hardness, thickness, reinforcement, cutting speed, pattern complexity, and daily operating time. Replace the blade when edges become rough or cutting becomes incomplete.
Can I test my material before purchasing?
Yes. Send the rubber sample and DXF drawing to Xingkai for a cutting test.
For recommendation, please send:
Material | Hardness | Thickness | Sheet Size | Cutting Drawing | Daily Production
Jinan Xingkai Machinery Equipment Co., Ltd. provides CNC oscillating knife cutting solutions for rubber gaskets, seals, washers, and customized industrial rubber components
