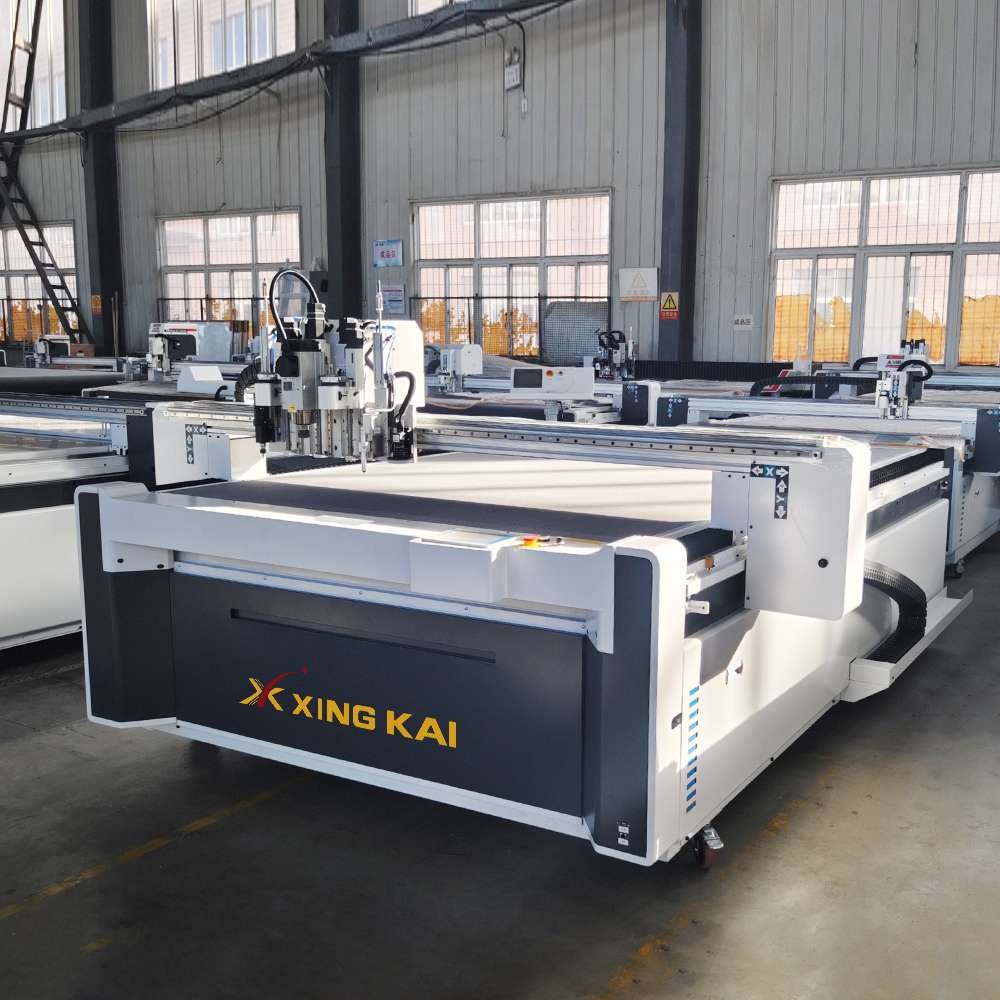

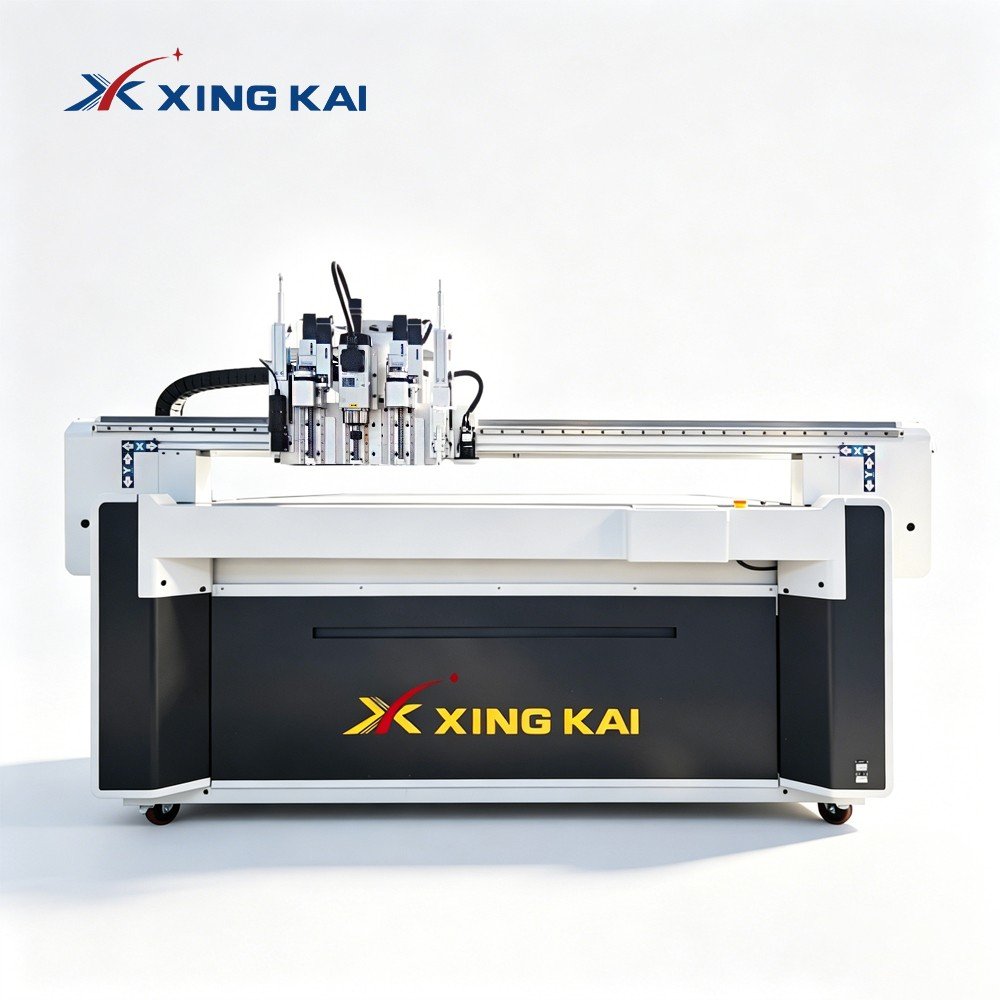

XK1615 Industrial CNC Rubber Sheet Cutting Machine with Pneumatic Oscillating Knife
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 1500mm
Rating
★★★★★ 4.8 / 5 (211 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai rubber cutting machines are industrial CNC oscillating knife cutting systems designed for automatic processing of flexible rubber sheets, silicone, neoprene, foam rubber, sponge rubber, industrial pads, protective liners, and rubber composite materials.
The machine combines CNC control, intelligent nesting, vacuum adsorption, servo drive, and interchangeable cutting tools. It can process samples, customized parts, mixed orders, and batch production directly from digital design files without cutting dies.
These machines typically consist of intelligent nesting software, a CNC control system, a vacuum adsorption table, an oscillating knife cutting tool, and optional automatic feeding, punching, marking, or camera-positioning systems. They support a fully digital workflow from design import and nesting to continuous precision cutting.
Xingkai rubber cutting machines are widely used in industrial rubber products, automotive components, sealing products, silicone products, foam and sponge rubber, protective pads, equipment liners, and customized manufacturing. They may also be referred to as CNC rubber cutters, automatic rubber sheet cutting machines, digital silicone cutters, or oscillating knife rubber cutting machines.
Rubber Cutting Machine Specifications
The machine configuration should be selected according to rubber hardness, elasticity, thickness and reinforcement structure.
| Parameter | Specification |
|---|---|
| Cutting Materials | Natural rubber, silicone rubber, EPDM, NBR, SBR, neoprene, foam rubber, sponge rubber, rubber sheet and rubber composite materials |
| Cutting Speed | Up to 1800 mm/s; actual speed depends on material elasticity, hardness and contour complexity |
| Cutting Thickness | Up to 20 mm for suitable rubber materials; sample testing is recommended |
| Material Fixing Method | Zoned vacuum adsorption with reverse air blowing |
| Cutting Accuracy | +/-0.1 mm under suitable cutting conditions |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V +/-10%, 50Hz |
| Transmission System | Servo motor drive, precision gear rack and industrial linear guide rails |
| Working Environment | Temperature: 5°C-35°C; Humidity: 35%-75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Industrial touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Oscillating knife |
| Optional Tools | Pneumatic oscillating knife, rotary tool, punching tool and marking pen |
| Optional Functions | Intelligent nesting, automatic feeding, projection positioning and CCD camera recognition |
Available Models and Dimensions
| Model | Effective Cutting Area (L x W) | Machine Dimensions (L x W) | Package Size (L x W) |
|---|---|---|---|
| 7010 | 1000 x 700 mm | 1700 x 1380 mm | 1850 x 1500 mm |

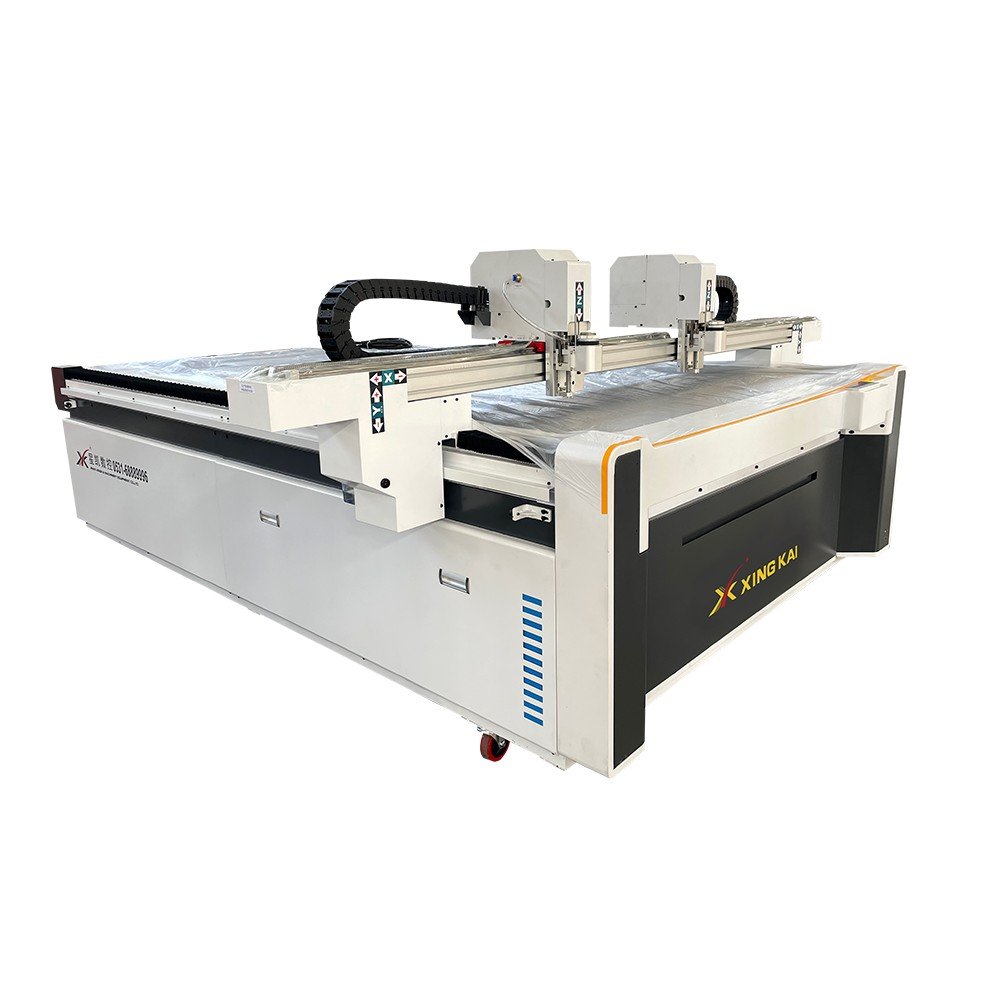

| 1615 | 1500 x 1600 mm | 2320 x 2500 mm | 2470 x 2620 mm |
| 1625 | 2500 x 1600 mm | 3350 x 2500 mm | 3500 x 2560 mm |
| 1825 | 2500 x 1800 mm | 3350 x 2700 mm | 3750 x 2290 mm |
| 1840 | 4000 x 1800 mm | 4800 x 2700 mm | 5200 x 2290 mm |
| 2025 | 2500 x 2000 mm | 3350 x 2900 mm | 1900 x 3100 mm, disassembled |
| 2030 | 3000 x 2000 mm | 3950 x 2900 mm | 2200 x 2900 mm, disassembled |
Recommended Cutting Tools
| Cutting Tool | Suitable Materials | Main Function |
|---|---|---|
| Oscillating Knife | Natural rubber, silicone, EPDM, NBR, SBR and neoprene | Cuts straight lines, curves, holes and irregular contours |
| Pneumatic Oscillating Knife | Thick, hard, dense or reinforced rubber | Provides stronger cutting force and improved penetration |
| Rotary Tool | Thin soft rubber, foam rubber and flexible sheet material | Provides efficient rolling cuts with reduced material pulling |
| Punching Tool | Rubber pads, seals and assembly components | Produces positioning and process holes |
| Marking Pen | Rubber parts requiring identification | Adds part numbers, assembly marks and reference lines |
Optional blades and accessories
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Why Choose a CNC Oscillating Knife Rubber Cutting Machine?
Rubber is elastic and can stretch, compress, or shift during manual cutting. The vacuum table holds the material flat while the CNC system follows the imported path, helping maintain consistent dimensions across repeated production batches.
Digital cutting eliminates the need to manufacture and store dies for every product. Operators can change shapes, sizes, and quantities directly in the software, making the machine suitable for prototypes, replacement parts, customized products, and high-mix production.
Unlike laser processing, blade cutting does not melt rubber edges or generate heat-affected surfaces. It provides clean mechanical cutting for many rubber and silicone materials.
Advantages of the High-End Industrial Rubber Cutting Machine
High-Speed Digital Cutting
The machine continuously processes different rubber patterns from imported design files.
High-Precision Cutting
Servo motion control supports accurate straight lines, curves, holes, slots, and complex shapes.
Automatic Nesting
Nesting software optimizes component placement according to sheet width and part geometry.
No Cutting Dies
Design changes can be completed in software without waiting for new tooling.
Clean Cutting Edges
Cold blade cutting avoids laser heat, melting, scorch marks, and heat deformation.
Suitable for Multiple Rubber Types
The system can process solid rubber, silicone, neoprene, foam rubber, sponge rubber, and selected reinforced composites.
Supports Sheets and Rolls
Fixed-table models process rubber sheets, while conveyor configurations support compatible roll materials.
Applicable materials

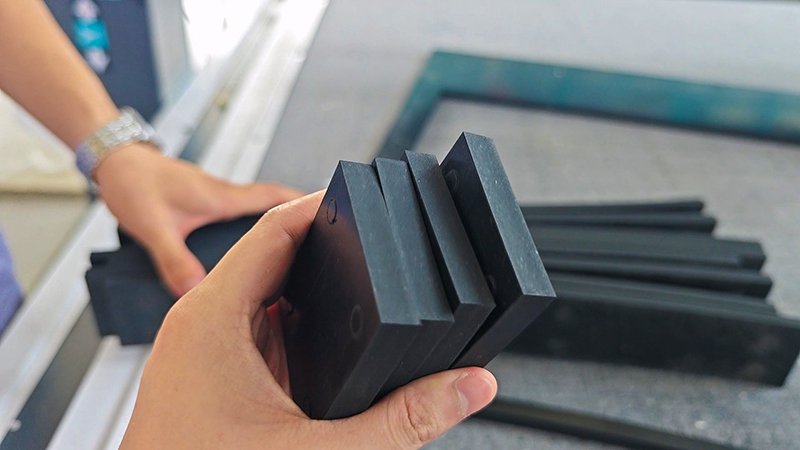

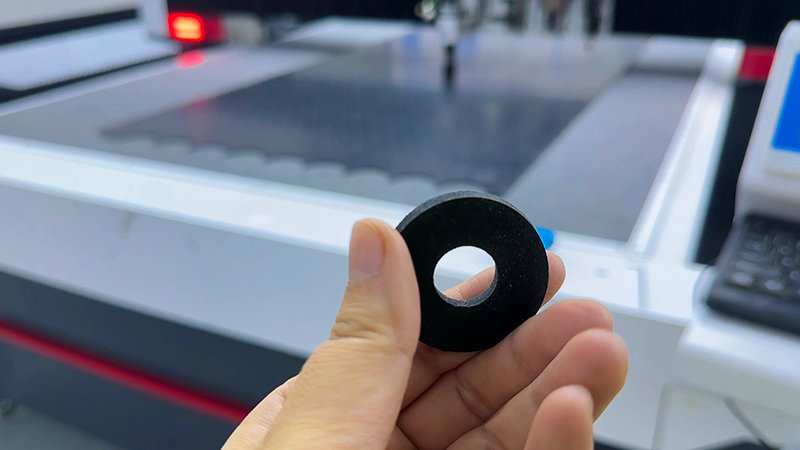

Rubber Gasket
Rubber Gasket

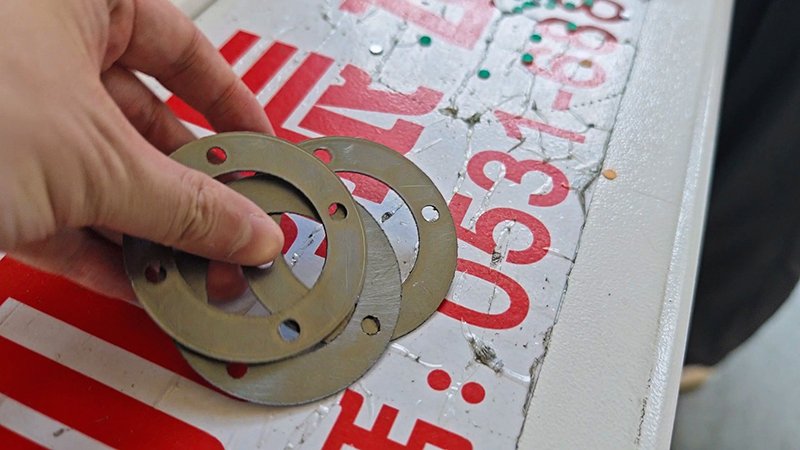

Graphite Gasket

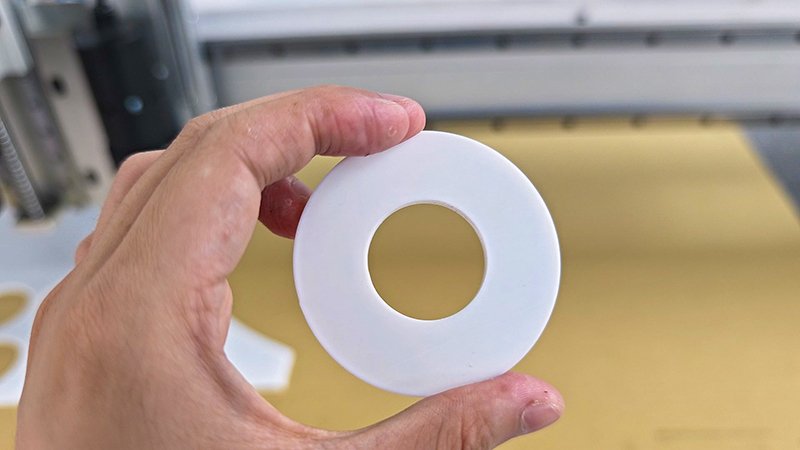

PTFE Gasket

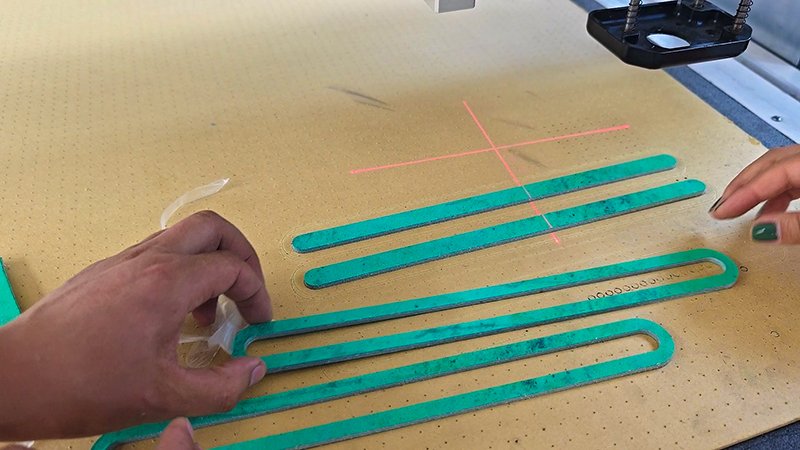

Asbestos free Gasket
Key Features of the Xingkai Rubber Oscillating Knife Cutting Machine
Heavy-Duty Welded Frame
The precision-machined frame provides rigidity and stable operation during continuous cutting.
Powerful Vacuum Adsorption
Zoned vacuum control secures flexible sheets and reduces movement or deformation.
Precision Drive System
Servo motors, gear racks, and linear guide rails provide accurate and repeatable movement.
Interchangeable Tools
Tool selection can be matched to rubber hardness, thickness, elasticity, and processing requirements.
Automatic Feeding Option
The conveyor table supports continuous processing of suitable rubber rolls and long components.
Stable and Reliable Operation
The modular structure, automatic lubrication system, industrial guide rails, and reliable CNC control system support long-term continuous production.
Automatic rubber cutting machines can be configured with different cutting tools according to material hardness, elasticity, density, thickness, reinforcement, and product shape. Electric oscillating knives are suitable for most natural rubber, silicone, EPDM, NBR, SBR, neoprene, foam rubber, and sponge rubber. Pneumatic oscillating knives provide greater force for thick or reinforced materials, while rotary tools may be used for selected thin and soft sheets.
If you are unsure which tool to choose, please provide the rubber type, Shore hardness, thickness, sheet or roll dimensions, cutting drawing, and required daily output. Xingkai can arrange sample testing and recommend a suitable configuration.
Why Choose an Oscillating Knife Cutter Instead of a Laser Cutting Machine for Rubber?
Laser cutting uses heat, which may melt rubber edges, create smoke or strong odors, discolor the material, and change the surface structure. The result depends heavily on the rubber formulation and additives.
An oscillating knife uses cold mechanical cutting. It produces no laser heat and helps maintain the original material properties and natural edge appearance. It is suitable for rubber parts requiring accurate dimensions and clean assembly surfaces.
Compared with manual cutting, the Xingkai digital rubber cutting machine combines intelligent nesting, vacuum adsorption, automatic feeding, and CNC cutting to improve consistency and reduce material waste.
Machine details and key components
Fan equipment
Multilingual operating system
Oil pump
Rack
Multiple blade combinations
Servo driver
Felt
Aviation aluminum honeycomb panel
Who Should Buy a Xingkai Digital Rubber Cutting Machine?
Industrial Rubber Product Manufacturers
Produces pads, liners, protective components, seals, covers, and customized rubber parts.
Automotive Parts Manufacturers
Cuts rubber pads, sound-insulation components, seals, floor materials, and flexible interior parts.
Silicone Product Manufacturers
Suitable for silicone sheets, pads, seals, protective components, and customized shapes.
Foam and Sponge Rubber Manufacturers
Processes foam rubber, sponge rubber, cushioning parts, packaging inserts, and protective pads.
Maintenance and Repair Companies
Useful for producing replacement parts and customized components without cutting dies.
Custom Manufacturing Workshops
Supports prototypes, small batches, mixed orders, and frequent design changes.
How to Choose a Xingkai Rubber Cutting Machine
For common soft rubber and silicone sheets, an electric oscillating knife is usually suitable. Thick, hard, dense, or fabric-reinforced materials may require a pneumatic oscillating knife. Thin soft sheets may also be tested with a rotary tool.
For roll materials, select a conveyor model with automatic feeding. For fixed sheets, samples, and small-batch parts, a fixed-table machine offers flexible loading and positioning.
The final selection should be based on material type, Shore hardness, thickness, reinforcement, sheet or roll size, maximum component dimensions, required accuracy, and daily output.
Recognition from customers
Frequently Asked Questions
What rubber materials can the machine cut?
It can cut natural rubber, silicone, EPDM, NBR, SBR, neoprene, foam rubber, sponge rubber, and selected rubber composites.
Can it cut reinforced rubber?
Some fabric-reinforced rubber can be cut with an oscillating or pneumatic oscillating knife. The actual material should be tested before configuration.
What is the maximum rubber cutting thickness?
Suitable rubber materials can be processed up to approximately 20 mm. Actual capacity depends on hardness, density, reinforcement, blade length, and edge-quality requirements.
Can it cut rubber rolls automatically?
Yes. A conveyor table and feeding system can be added for compatible roll materials.
How does the machine keep elastic rubber stable?
The vacuum adsorption table holds the material flat. Cutting speed, acceleration, blade type, and feeding tension are adjusted to reduce stretching and deformation.
Can the machine cut multiple layers?
Small-batch multilayer cutting is possible for suitable uniform rubber sheets. Selection should be based on the total compressed thickness and required accuracy.
Which design file formats are supported?
The machine supports DXF and HPGL and can work with compatible CAD, nesting, and pattern software.
Does the machine require cutting dies?
No. Different shapes and sizes can be changed directly in the digital design file.
Can it punch holes and add marks?
Yes. Optional punching and marking tools can create suitable process holes, part numbers, positioning points, and assembly references.
Does rubber cutting produce burnt edges?
No. The oscillating knife cuts mechanically without laser heat.
How often should the blade be replaced?
Blade life depends on material hardness, reinforcement, cutting speed, pattern complexity, and daily operating time. Replace it when edges become rough, corners lose accuracy, or cutting is incomplete.
Can I test my material before purchasing?
Yes. Xingkai can test the actual rubber sample and provide a cutting video and finished parts.
For recommendation, please send:
Material | Hardness | Thickness | Sheet or Roll Size | Cutting Size | Daily Production
Jinan Xingkai Machinery Equipment Co., Ltd. provides digital cutting solutions for rubber sheets, silicone, neoprene, foam rubber, industrial pads, and customized flexible rubber parts.
