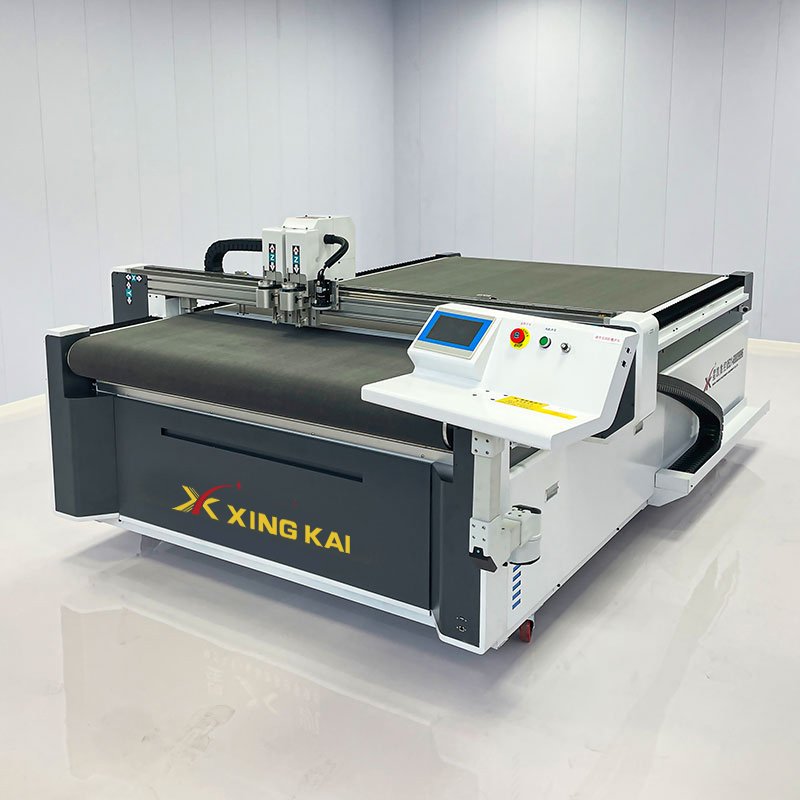

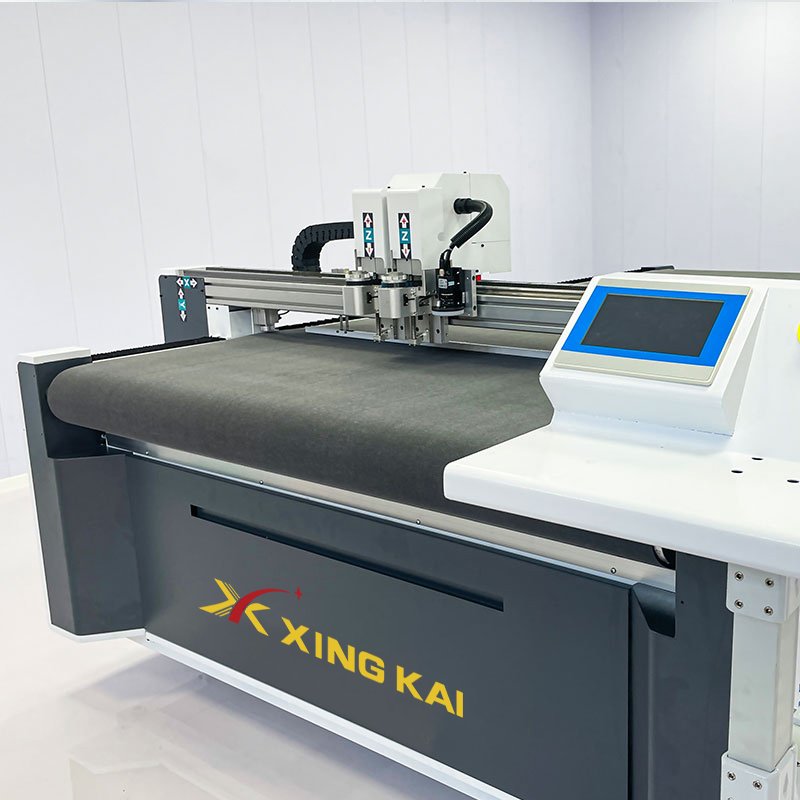

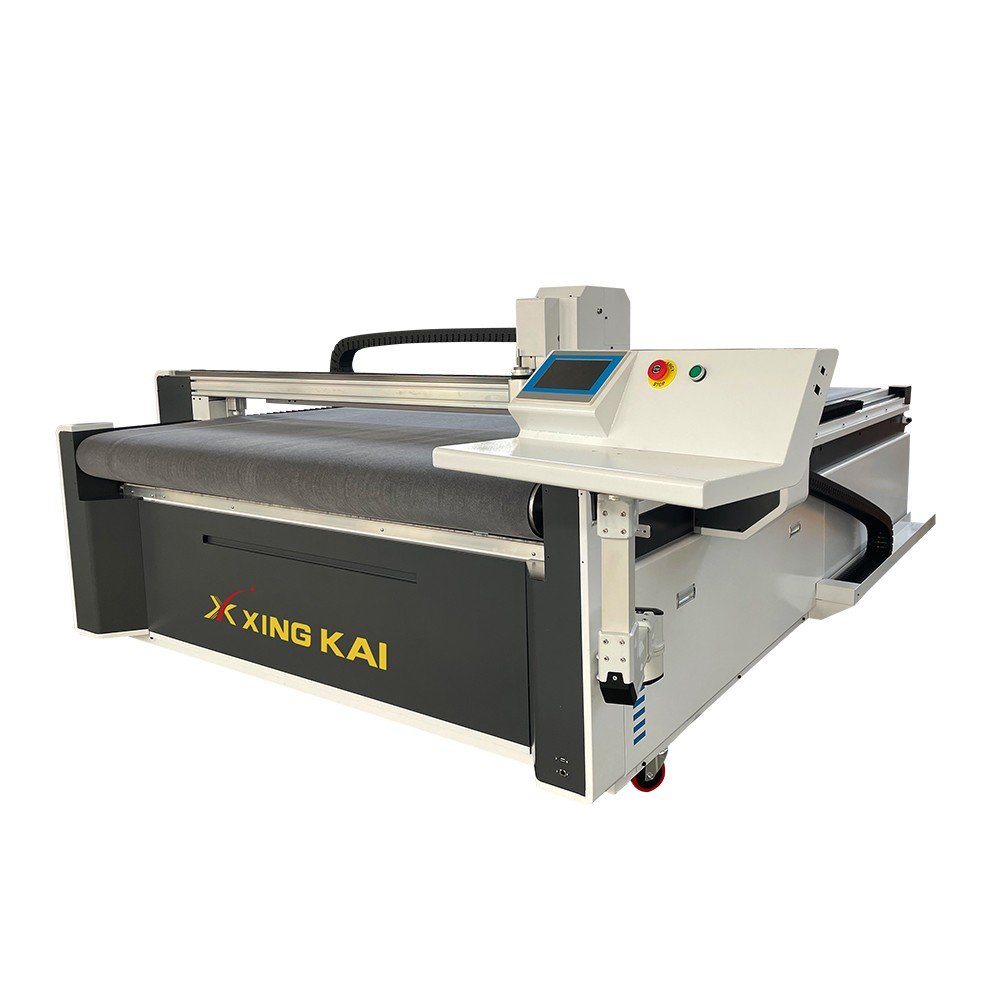

XK-1625 Automatic CNC Oscillating Knife Carpet Cutting Machine
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 2500mm
Rating
★★★★★ 4.8 / 5 (11 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai carpet cutting machines are industrial CNC oscillating knife systems designed for the automated cutting of carpet rolls, carpet sheets, mats, and flooring components.
They deliver accurate cutting for tufted carpet, needle-punched carpet, woven carpet, exhibition carpet, automotive carpet, commercial carpet, household carpet, carpet tiles, entrance mats, floor mats, artificial turf, rubber-backed carpet, PVC-backed carpet, and laminated carpet materials.
The machine integrates intelligent nesting software, a CNC control system, a vacuum adsorption conveyor table, and an oscillating knife cutting tool. Optional pneumatic knives, rotary tools, punching tools, marking tools, and CCD positioning systems can be added according to carpet thickness, backing structure, and product requirements.
Xingkai carpet cutting machines are widely used in automotive floor mats, entrance mats, commercial flooring, household carpets, exhibition carpets, marine flooring, hospitality projects, customized rugs, and industrial floor-covering components. They may also be called CNC carpet cutters, automatic carpet cutting machines, digital rug cutters, carpet roll cutting machines, or oscillating knife cutters for carpets.
Carpet Cutting Machine Specifications
Customizable working sizes and cutting configurations are available upon request.
| Parameter | Specification |
|---|---|
| Cutting Materials | Tufted carpet, needle-punched carpet, woven carpet, automotive carpet, exhibition carpet, carpet tiles and backed carpet |
| Cutting Speed | Up to 1800 mm/s; actual speed depends on carpet thickness, backing and pattern |
| Cutting Thickness | Up to 30 mm, depending on pile height, density and backing hardness |
| Material Fixing Method | Vacuum adsorption with reverse air blowing |
| Cutting Accuracy | +/-0.1 mm |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V +/-10%, 50Hz |
| Transmission System | Servo motor drive and precision linear guide rails |
| Working Environment | Temperature: 5°C-35°C; Humidity: 35%-75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Oscillating knife |
| Optional Tools | Pneumatic oscillating knife, rotary tool, punching tool and marking pen |
| Optional Functions | Automatic nesting, automatic feeding, projection positioning and CCD camera recognition |
Available Models and Dimensions
| Model | Effective Cutting Area (L x W) | Machine Dimensions (L x W) | Package Size (L x W) |
|---|---|---|---|
| 7010 | 1000 x 700 mm | 1700 x 1380 mm | 1850 x 1500 mm |
| 1615 | 1500 x 1600 mm | 2320 x 2500 mm | 2470 x 2620 mm |
| 1625 | 2500 x 1600 mm | 3350 x 2500 mm | 3500 x 2560 mm |
| 1825 | 2500 x 1800 mm | 3350 x 2700 mm | 3750 x 2290 mm |
| 1840 | 4000 x 1800 mm | 4800 x 2700 mm | 5200 x 2290 mm |
| 2025 | 2500 x 2000 mm | 3350 x 2900 mm | 1900 x 3100 mm, disassembled |
| 2030 | 3000 x 2000 mm | 3950 x 2900 mm | 2200 x 2900 mm, disassembled |
Recommended Cutting Tools
| Cutting Tool | Suitable Materials | Main Function |
|---|---|---|
| Oscillating Knife | Tufted carpet, needle-punched carpet, automotive carpet and general carpet materials | Cuts straight lines, curves, holes and complex contours |
| Pneumatic Oscillating Knife | Thick, dense, rubber-backed, PVC-backed or laminated carpet | Provides stronger cutting force for difficult materials |
| Rotary Tool | Thin exhibition carpet and flexible carpet rolls | Provides fast rolling cuts for long, smooth contours |
| Punching Tool | Automotive floor mats and carpet components | Produces positioning holes, fixing holes and assembly holes |
| Marking Pen | Carpet parts requiring assembly or installation references | Marks part numbers, positioning points and matching locations |
Recommended Tool Configurations
| Application | Recommended Configuration |
|---|---|
| Automotive floor mats | Oscillating Knife + Punching Tool + Marking Pen |
| Tufted and woven carpet | Oscillating Knife + Automatic Feeding System |
| Needle-punched carpet | Oscillating Knife or Rotary Tool |
| Thick or dense carpet | Pneumatic Oscillating Knife |
| Rubber-backed or PVC-backed carpet | Pneumatic Oscillating Knife + Vacuum Adsorption System |
| Exhibition carpet | Rotary Tool + Automatic Feeding System |
| Printed or patterned carpet | Oscillating Knife + CCD Camera |
| Carpet tiles and fixed-size sheets | Oscillating Knife + Fixed Table |
| Customized rugs and mats | Oscillating Knife + Automatic Nesting |
Optional blades and accessories
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Why Choose a CNC Carpet Cutting Machine?
Carpet materials are flexible, heavy, and may contain thick pile, dense fibers, or hard backing layers. Manual cutting requires considerable labor and makes it difficult to maintain consistent curves, holes, corners, and finished dimensions.
Traditional die cutting requires a separate die for each mat shape and size. This increases tooling cost and limits flexibility for customized carpets, multiple vehicle models, commercial projects, and frequently changing designs.
A CNC carpet cutting machine uses vacuum adsorption to stabilize the material and follows the imported design path automatically. The oscillating knife cuts through the carpet pile and backing to produce straight lines, curves, holes, slots, and irregular contours.
For carpet rolls, the conveyor table automatically advances the material after each cutting section. Intelligent nesting software arranges components according to roll width and pattern shape, helping reduce offcuts and support continuous production.
Mechanical blade cutting generates no laser heat. It helps avoid burnt fibers, melted backing, smoke, and strong odors while maintaining clean, natural edges.
Advantages of the Xingkai Industrial Carpet Cutting Machine
Continuous Roll Cutting
The conveyor table supports automatic feeding of carpet rolls and long patterns, reducing repeated loading and manual handling.
Accurate Irregular Shapes
The CNC system cuts curves, holes, slots, internal contours, and complex mat shapes according to the digital design.
Intelligent Automatic Nesting
Nesting software optimizes layouts according to roll width and part geometry, reducing unnecessary gaps and improving carpet utilization.
No Cutting Dies Required
Different vehicle models, room layouts, mat sizes, and customized patterns can be produced by changing the digital file.
Clean Cutting Without Heat
Blade cutting avoids burnt pile, melted backing, smoke, and heat-related discoloration.
Multiple Process Integration
Cutting, punching, and marking can be completed within one digital workflow when the corresponding tools are installed.
Reduced Labor Requirements
Automatic nesting, feeding, and cutting reduce manual pattern placement and hand cutting.
Suitable for Backed Carpet
Electric or pneumatic oscillating knives can be selected for rubber-backed, PVC-backed, and laminated carpet according to material hardness.
Flexible Production
The machine supports samples, customized orders, multiple sizes, small batches, and continuous production.
Stable Industrial Operation
Precision gear racks, industrial guide rails, and a reliable CNC system provide smooth movement and long-term production stability.
Key Features of the XK-1625 Automatic CNC Oscillating Knife Carpet Cutting Machine
Heavy-Duty Machine Frame
The precision-machined welded frame provides rigidity and stable support for long-term industrial cutting.
Industrial CNC Control System
The touchscreen system controls design files, nesting, feeding, tools, cutting paths, and processing parameters.
Vacuum Adsorption Conveyor Table
The vacuum table holds carpet flat during cutting. Vacuum zones and covering methods can be adjusted according to carpet permeability, pile height, and backing structure.
Oscillating Knife Cutting
High-frequency blade movement provides effective cutting force for carpet pile and backing layers.
Pneumatic Knife Option
The pneumatic oscillating knife provides stronger cutting force for thick, dense, hard-backed, or laminated carpet.
Automatic Feeding System
The conveyor table advances carpet rolls automatically and supports long parts and continuous batch production.
Punching and Marking Options
Optional tools can create fixing holes, positioning holes, matching points, and assembly marks for floor mats and fitted carpet components.
Optional CCD Positioning
For printed or patterned carpets, a CCD camera can recognize registration marks or printed contours before cutting.
Carpet cutting tools should be selected according to pile height, fiber type, density, backing hardness, lamination, and required shape. The electric oscillating knife is suitable for most carpet and mat materials. A pneumatic oscillating knife is recommended for thick, dense, rubber-backed, or PVC-backed products. A rotary knife can be used for selected thin exhibition carpet and long, smooth contours.
If you are unsure which tool to choose, send us the carpet type, thickness, backing material, roll width, cutting drawing, and daily production. Xingkai can arrange a sample test and recommend a suitable configuration.
Why Choose an Oscillating Knife Instead of a Laser for Carpet?
Laser cutting uses heat to burn or melt carpet fibers and backing layers. This may produce hardened edges, discoloration, smoke, unpleasant odors, or melted synthetic backing.
An oscillating knife cuts mechanically without generating cutting heat. It helps preserve the original pile and backing structure and produces clean edges without scorching.
Compared with manual cutting, the digital carpet cutter combines automatic nesting, vacuum adsorption, continuous feeding, punching, marking, and CNC cutting. This improves consistency while reducing labor and material waste.
Who Should Buy a Xingkai Digital Carpet Cutting Machine?
Automotive Floor Mat Manufacturers
Cuts vehicle-specific floor mats, trunk mats, cargo liners, heel pads, fixing holes, and customized interior carpet components.
Commercial Carpet Manufacturers
Processes carpet sections for offices, hotels, retail spaces, restaurants, exhibition halls, and other commercial projects.
Entrance Mat Manufacturers
Cuts entrance mats, logo mats, anti-slip mats, door mats, and customized shapes.
Household Carpet and Rug Manufacturers
Produces rugs, hallway carpets, stair components, room-specific carpet pieces, and decorative floor coverings.
Exhibition and Event Suppliers
Cuts exhibition carpet, temporary flooring, booth components, and project-specific floor layouts.
Marine and Transport Interior Manufacturers
Processes boat flooring, cabin carpet, transport interior mats, protective floor coverings, and customized fitted components.
How to Choose a XK-1625 Automatic CNC Oscillating Knife Carpet Cutting Machine
For carpet rolls and long patterns, a conveyor cutting machine with automatic feeding is normally recommended. The working width should match the customer's maximum roll width.
For carpet tiles, samples, fixed-size sheets, and small customized mats, a fixed-table model provides flexible material placement.
For common carpet, an electric oscillating knife normally provides efficient cutting. For thick, dense, rubber-backed, PVC-backed, or laminated carpet, a pneumatic oscillating knife is recommended.
For automotive mats requiring fixing holes and assembly references, punching and marking tools can be added. For printed logo mats or patterned carpet, a CCD positioning system may be selected.
Machine configuration should be based on carpet type, thickness, pile height, backing material, roll width, maximum part size, required tools, and daily production. Sample testing is recommended before purchase.
Frequently Asked Questions
What carpet materials can the machine cut?
The machine can cut tufted carpet, needle-punched carpet, woven carpet, automotive carpet, exhibition carpet, commercial carpet, household carpet, carpet tiles, entrance mats, artificial turf, rubber-backed carpet, and PVC-backed carpet.
Which knife is best for carpet cutting?
An electric oscillating knife is suitable for most carpet materials. A pneumatic oscillating knife is recommended for thick, dense, or hard-backed carpet. A rotary tool may be suitable for selected thin exhibition carpet.
Can the machine cut carpet rolls automatically?
Yes. The conveyor table automatically feeds roll material and supports long patterns and continuous production.
Can it cut automotive floor mats?
Yes. The machine can cut vehicle-specific mat contours and can be equipped with punching and marking tools for fixing holes and assembly references.
Does carpet cutting produce smoke or burnt edges?
No. Mechanical blade cutting avoids laser heat, burnt pile, melted backing, smoke, and strong odors.
Loose fibers or lint may occur depending on the carpet structure. Regular table and vacuum system cleaning is recommended.
How does the machine hold carpet flat?
The vacuum table stabilizes the material. Vacuum zones, covering methods, and cutting parameters can be adjusted according to carpet permeability, pile height, and backing structure.
Can the machine cut printed carpets or logo mats?
Yes. An optional CCD camera can recognize registration marks or printed contours and guide the cutting path.
Which design files are supported?
The machine supports common formats such as DXF and PLT and works with standard CAD and nesting software.
Does the machine require cutting dies?
No. Different patterns and sizes can be changed directly in the digital design file.
Can I test my carpet before purchasing?
Yes. Customers can send carpet samples and cutting drawings to Xingkai. We can provide cutting videos and finished sample results.
To recommend the correct configuration, please provide:
Material | Thickness | Backing Material | Roll Width | Cutting Size | Daily Production
Jinan Xingkai Machinery Equipment Co., Ltd. provides digital carpet cutting solutions for automotive floor mats, commercial carpets, entrance mats, household rugs, exhibition flooring, marine interiors, and customized floor-covering manufacturers.
