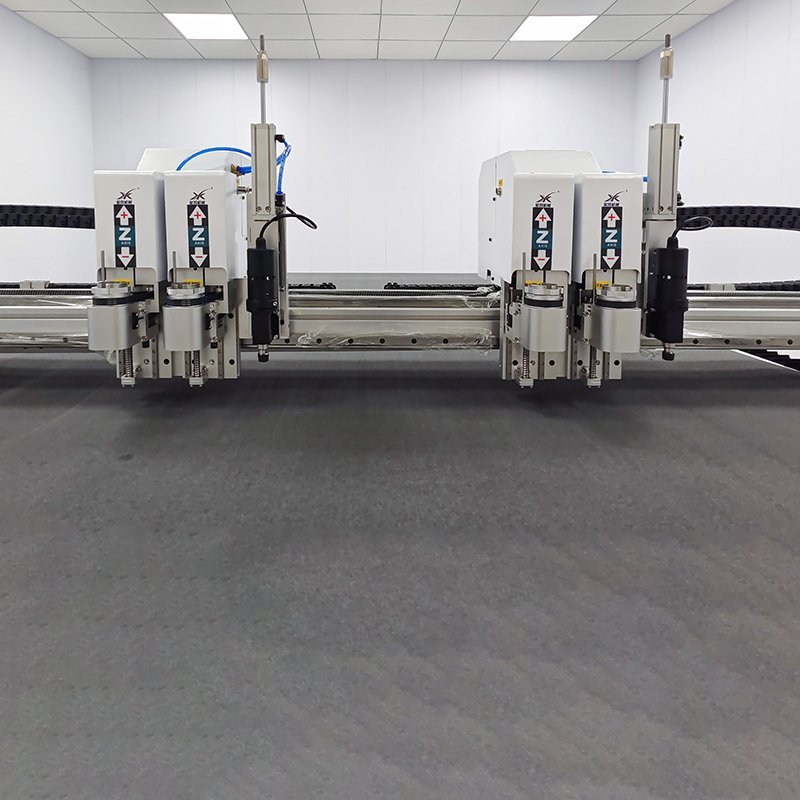

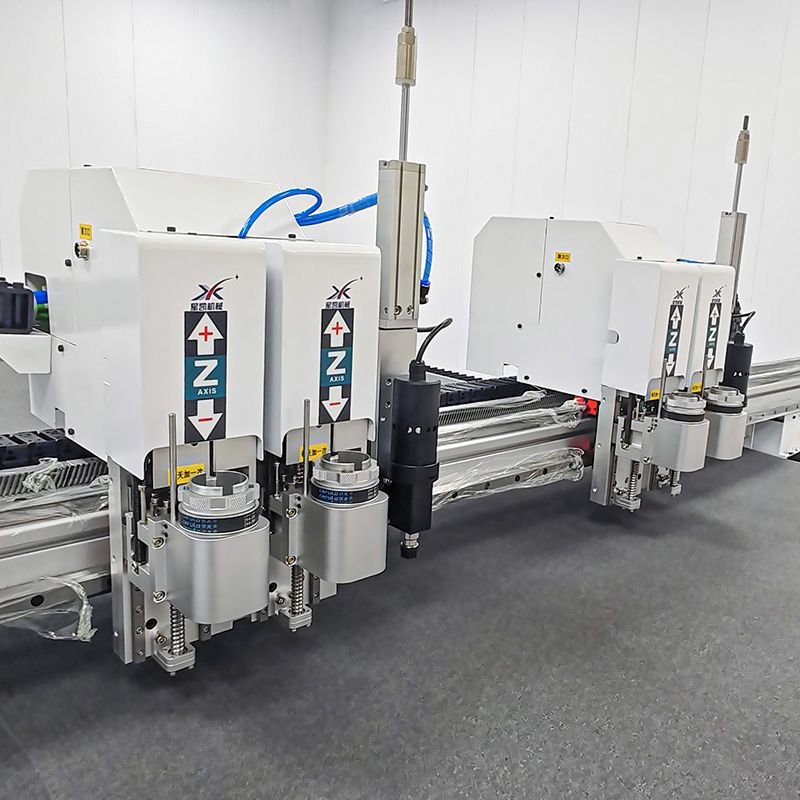

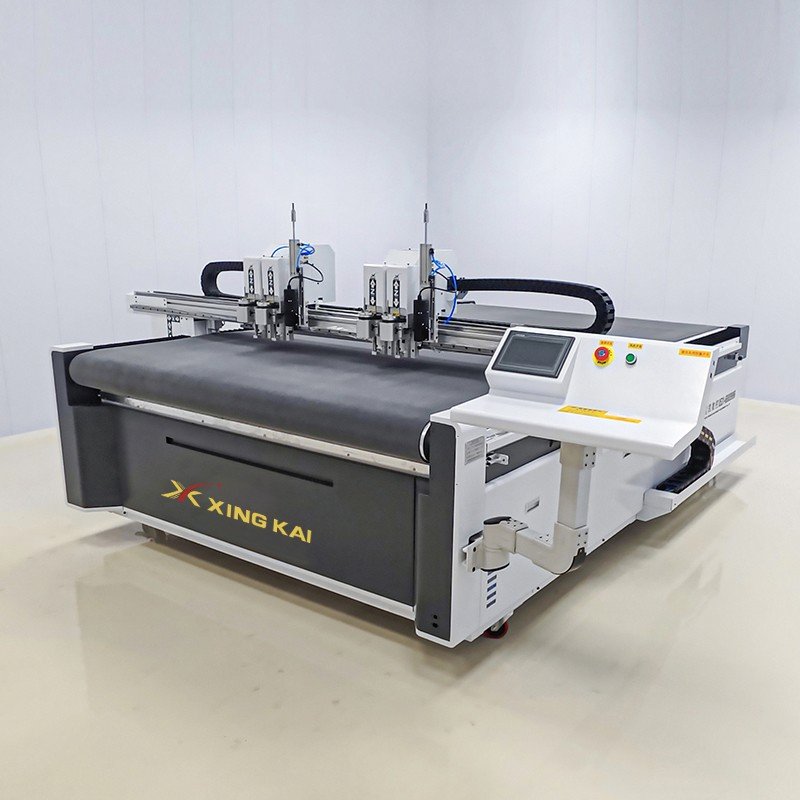

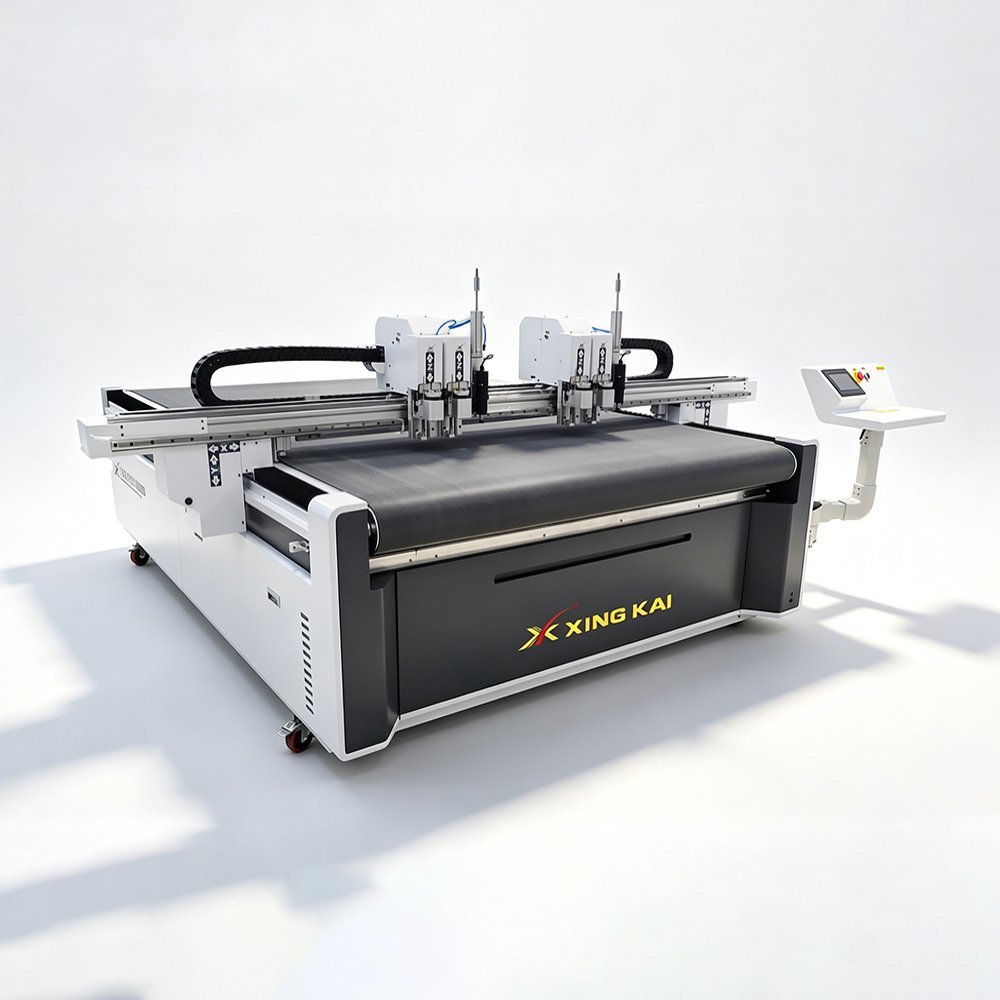

XK1625 Dual Head Asynchronous Automatic Feeding CNC Oscillating Knife Sofa Fabric Cutting Machine
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 2500mm
Rating
★★★★★ 4.8 / 5 (21 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai sofa fabric oscillating knife cutting machines are industrial CNC cutting systems designed for the automated cutting of upholstery textiles and flexible furniture materials.
They provide accurate cutting for woven sofa fabric, knitted upholstery fabric, polyester textiles, linen, cotton, canvas, velvet, microfiber, suede-like fabric, nonwoven backing, furniture felt, laminated textiles, and composite upholstery materials. Depending on production requirements, the machine can also process selected artificial leather and other flexible furniture materials.
The machine combines intelligent nesting software, a CNC control system, vacuum adsorption, an automatic feeding conveyor, and oscillating knife cutting technology. It supports a digital workflow from design file import and automatic nesting to marking, punching, feeding, and continuous cutting. No cutting dies are required. Operators can quickly change sofa models, component sizes, and cutting quantities through the software.
Xingkai sofa fabric cutting machines are widely used by sofa factories, upholstered furniture manufacturers, chair producers, cushion manufacturers, home furnishing companies, automotive upholstery suppliers, and customized furniture workshops. They may also be referred to as upholstery fabric cutting machines, automatic sofa fabric cutters, CNC textile cutting machines, conveyor fabric cutting machines, or oscillating knife cutters for furniture fabric.
Sofa Fabric Cutting Machine Specifications
Customizable working sizes and cutting configurations are available upon request.
| Parameter | Specification |
|---|---|
| Cutting Materials | Sofa fabric, upholstery textile, canvas, velvet, microfiber, nonwoven fabric, furniture felt and composite fabric |
| Cutting Speed | Up to 1800 mm/s; actual speed depends on the material and cutting pattern |
| Cutting Thickness | Depends on material density, compressibility, tool selection and required accuracy |
| Material Fixing Method | Vacuum adsorption |
| Cutting Accuracy | +/-0.1 mm under suitable material and operating conditions |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V +/-10%, 50Hz |
| Transmission System | Servo motor drive and precision linear guide rails |
| Working Environment | Temperature: 5°C-35°C; Humidity: 35%-75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Oscillating knife |
| Optional Tools | Rotary tool, pneumatic oscillating knife, punching tool and marking pen |
| Optional Functions | Automatic nesting, automatic feeding, projection positioning and camera recognition |
Available Models and Dimensions
| Model | Effective Cutting Area (L x W) | Machine Dimensions (L x W) | Package Size (L x W) |
|---|---|---|---|
| 7010 | 1000 x 700 mm | 1700 x 1380 mm | 1850 x 1500 mm |
| 1615 | 1500 x 1600 mm | 2320 x 2500 mm | 2470 x 2620 mm |
| 1625 | 2500 x 1600 mm | 3350 x 2500 mm | 3500 x 2560 mm |
| 1825 | 2500 x 1800 mm | 3350 x 2700 mm | 3750 x 2290 mm |
| 1840 | 4000 x 1800 mm | 4800 x 2700 mm | 5200 x 2290 mm |
| 2025 | 2500 x 2000 mm | 3350 x 2900 mm | 1900 x 3100 mm, disassembled |
| 2030 | 3000 x 2000 mm | 3950 x 2900 mm | 2200 x 2900 mm, disassembled |
Recommended Cutting Tools
| Cutting Tool | Suitable Materials | Main Function |
|---|---|---|
| Oscillating Knife | Dense sofa fabric, furniture felt, composite upholstery and laminated textiles | Cuts straight lines, curves and complex contours with stable cutting force |
| Rotary Tool | Thin woven fabric, knitted fabric, soft upholstery textile and flexible fabric | Provides fast rolling cuts with reduced material pulling |
| Pneumatic Oscillating Knife | Thick felt, dense composite fabric and hard upholstery materials | Provides greater cutting force for thick or dense materials |
| Punching Tool | Sofa panels, cushions and upholstery components | Produces positioning holes, sewing holes and process holes |
| Marking Pen | Sofa fabric and upholstery components | Marks sewing lines, positioning points, part numbers and assembly references |
Recommended Tool Configurations
| Application | Recommended Configuration |
|---|---|
| Standard sofa fabric | Oscillating Knife + Automatic Feeding System |
| Thin and soft upholstery textile | Rotary Tool + Vacuum Adsorption System |
| Dense felt or composite upholstery | Oscillating Knife or Pneumatic Oscillating Knife |
| Sofa panels requiring sewing guides | Cutting Tool + Marking Pen |
| Parts requiring positioning holes | Cutting Tool + Punching Tool |
| Patterned fabric alignment | Cutting Tool + Camera Recognition |
| Customized fixed-size materials | Fixed Table + Projection Positioning |
| Continuous roll production | Conveyor Table + Automatic Feeding System |
Optional blades and accessories
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Why Choose a CNC Sofa Fabric Oscillating Knife Cutting Machine?
Sofa fabric is flexible, easy to shift, and may stretch or wrinkle during manual cutting. Inconsistent spreading and hand-cutting can cause dimensional differences between matching sofa panels, making later sewing and assembly more difficult.
Traditional cutting dies are not economical when furniture manufacturers produce multiple sofa models, customized dimensions, or small batches. Each change in panel shape or size may require a new die and additional setup time.
A CNC sofa fabric cutting machine uses vacuum adsorption to hold the material flat and automatically follows the imported design file. The machine can cut straight lines, curves, notches, holes, slots, and complex upholstery-panel contours accurately.
Intelligent nesting software arranges sofa parts according to roll width, pattern shape, quantity, and production priority. This reduces offcuts and improves fabric utilization. The automatic feeding system works with the conveyor table to support continuous processing of roll materials and long cutting patterns.
Xingkai sofa fabric cutting machines use blades for physical cutting. Unlike laser processing, they generate no cutting heat, helping avoid scorch marks, melted edges, smoke, and unpleasant odors. The finished fabric parts can normally proceed directly to sewing and assembly.
Applicable materials
Sofa fabric
Sofa fabric
Advantages of the Automatic Sofa Fabric Cutting Machine
High-Speed Cutting
The high-speed motion control system and oscillating knife technology allow the machine to cut different sofa panels continuously, shortening sampling and production cycles.
High-Precision Cutting
The machine follows imported design files to cut straight lines, curves, holes, notches, and irregular contours. It helps maintain consistent dimensions across matching furniture components.
Intelligent Automatic Nesting
Nesting software optimizes panel placement according to fabric width, part size, quantity, and contour shape. This reduces offcuts and improves material utilization.
Automatic Feeding
The conveyor table continuously feeds sofa fabric rolls through the cutting area, reducing repeated manual positioning and supporting long patterns and batch production.
No Cutting Dies Required
Different sofa models and component sizes can be changed directly in the software. Manufacturers can produce samples, custom orders, and multiple models without making new dies.
Reduced Labor Costs
The machine automatically completes nesting, feeding, positioning, marking, punching, and cutting according to the selected configuration. This reduces repetitive manual work and dependence on experienced hand-cutting operators.
Clean Cutting Edges
Blade cutting produces no cutting heat, burnt edges, smoke, or strong odors. It is suitable for many natural, synthetic, and composite upholstery materials.
Supports Multiple Production Methods
The machine is suitable for single-piece samples, customized furniture, multiple sizes, small batches, and continuous roll production.
Machine details and key components
Fan equipment
Multilingual operating system
Oil pump
Rack
Multiple blade combinations
Servo driver
Felt
Aviation aluminum honeycomb panel
Key Features of the Xingkai Sofa Fabric Cutting Machine
Heavy-Duty Machine Frame
The high-strength welded frame is precision-machined for stable operation and long-term cutting accuracy.
Intelligent CNC Control System
The industrial touchscreen controls files, tools, cutting paths, speed, feeding, and processing parameters.
Powerful Vacuum Adsorption
The vacuum table holds flexible fabric flat and reduces shifting, wrinkles, and contour deformation during cutting.
High-Precision Drive System
Servo motors, precision gear racks, and industrial linear guide rails provide smooth movement and repeatable cutting.
Automatic Feeding Conveyor
The conveyor table supports continuous processing of roll materials, reducing manual spreading and repeated loading.
Oscillating Knife Cutting
High-frequency blade movement provides controlled cutting for dense upholstery fabrics, felt, and composite textiles without heat or smoke.
Multiple Tool Configuration
The machine can be equipped with oscillating knives, rotary tools, pneumatic oscillating knives, marking pens, and punching tools according to the material and production process.
Optional Camera Positioning
A camera system can be added when patterned fabric, printed contours, or positioning marks must be recognized before cutting.
Automatic digital sofa fabric cutting machines can be configured with different tools according to material thickness, density, elasticity, air permeability, and backing structure. A rotary tool is suitable for selected thin and soft fabrics, while an oscillating knife is suitable for denser upholstery textiles, felt, and composite materials. A pneumatic oscillating knife can provide greater cutting force for thick or compact materials.
Marking and punching tools can add sewing references, positioning points, part numbers, matching marks, and process holes. For patterned materials, camera recognition or projection positioning can be selected according to the alignment method.
If you are unsure which cutting tool to choose, please send the sofa fabric type, thickness, roll width, cutting dimensions, pattern drawing, and required daily output. Xingkai will recommend a suitable machine and tool configuration.
Recognition from customers
Why Choose an Oscillating Knife Instead of a Laser for Sofa Fabric?
Laser cutting uses heat to melt or burn through textiles. When cutting certain synthetic sofa fabrics, it may produce scorch marks, melted edges, smoke, or odors. Heat may also change the color or texture of the fabric edge.
An oscillating knife cuts mechanically without generating cutting heat. It helps preserve the original appearance and texture of the upholstery material. The finished parts normally require no removal of burnt residue before sewing.
Compared with manual cutting, the Xingkai digital sofa fabric cutting machine combines automatic nesting, vacuum adsorption, automatic feeding, marking, punching, and CNC cutting. This improves production consistency and reduces material waste.
Laser cutting may remain suitable for selected compatible fabrics requiring heat-sealed edges. However, oscillating knife cutting is generally a cleaner and more flexible solution for sofa, chair, cushion, and upholstered furniture production.
Who Should Buy a Xingkai Sofa Fabric Cutting Machine?
Sofa Manufacturers
Suitable for cutting seat panels, backrest panels, armrest fabric, side panels, skirts, cushions, and decorative components.
Upholstered Furniture Manufacturers
Cuts chair fabric, recliner components, upholstered bed panels, headboard fabric, benches, and customized furniture parts.
Home Furnishing Manufacturers
Processes furniture covers, cushions, pillows, decorative textiles, wall coverings, and household upholstery materials.
Hotel and Contract Furniture Suppliers
Suitable for producing standardized or customized upholstery components for hotels, theaters, offices, restaurants, and commercial spaces.
Automotive Upholstery Manufacturers
Can process selected seat fabrics, headliner textiles, interior felt, and composite upholstery materials after sample testing.
Customized Furniture Workshops
Ideal for samples, replacement covers, custom dimensions, small batches, and production involving frequent model changes.
How to Choose a Xingkai Sofa Fabric Cutting Machine
For rolled sofa fabric, upholstery textile, furniture felt, and composite fabric, a conveyor cutting machine with automatic feeding is recommended. It supports continuous production and long cutting patterns.
For fixed-size materials, samples, replacement panels, and small-batch customized orders, a fixed-table model is compact and flexible.
For thin and soft textiles, a rotary tool may provide efficient cutting with reduced fabric pulling. For standard or dense sofa fabric, an oscillating knife is normally recommended. Thick felt and dense composite upholstery may require a pneumatic oscillating knife.
If the product requires sewing guides, part numbers, assembly references, or positioning holes, marking and punching tools can be added. Patterned or printed upholstery fabric may require camera recognition or projection positioning.
Machine configuration should be based on material type, thickness, elasticity, air permeability, roll width, maximum panel size, pattern complexity, and daily output. Sample testing is recommended before confirming the final configuration.
Frequently Asked Questions
What sofa fabrics can the machine cut?
The machine can cut woven fabric, knitted fabric, polyester textile, linen, cotton, canvas, velvet, microfiber, suede-like fabric, nonwoven backing, furniture felt, laminated textile, and composite upholstery materials.
Because elasticity, air permeability, density, and backing structure vary, customers should provide material samples, photos, thickness, roll width, and cutting drawings.
Can the machine process fabric rolls continuously?
Yes. A conveyor table with automatic feeding supports continuous roll feeding and cutting. The feeding system is selected according to roll width, material tension, pattern length, and daily output.
Can it cut elastic or easily deformed sofa fabric?
Yes. Elastic fabrics require suitable vacuum adsorption, low-tension feeding, tool selection, and cutting parameters. Testing with the actual material is recommended.
Can the machine cut multiple layers of sofa fabric?
Small-batch multilayer cutting may be possible for suitable materials. Machine selection should be based on the total thickness after vacuum compression, material permeability, density, friction, and required accuracy rather than layer count alone.
Does sofa fabric cutting produce smoke or burnt edges?
No. The oscillating knife cuts mechanically without laser heat. It avoids burnt edges, scorch marks, smoke, and heat-related discoloration.
How does the machine hold air-permeable fabric?
The machine uses vacuum adsorption. Highly air-permeable materials can be covered with a special film to strengthen the vacuum hold and improve cutting stability.
Does the machine require cutting dies?
No. Designs can be modified on a computer and imported directly into the cutting system. Different sofa models and sizes can be changed quickly without producing new dies.
Can the machine mark sewing lines and punch holes?
Yes. Optional marking and punching tools can create sewing references, positioning marks, part numbers, matching points, and process holes.
Which design files are supported?
The machine supports standard formats such as DXF and HPGL and can work with commonly used CAD, pattern-making, and nesting software. Compatibility with other formats can be confirmed.
Can I test my sofa fabric before purchasing?
Yes. Customers can send material samples and cutting drawings to Xingkai for testing. We can provide cutting videos and finished sample results.
To recommend the correct configuration, please provide:
Material | Thickness | Roll Width | Cutting Size | Single or Multiple Layers | Daily Production
Jinan Xingkai Machinery Equipment Co., Ltd. provides CNC oscillating knife cutting solutions for flexible materials. We offer suitable table sizes, automatic feeding systems, vacuum configurations, cutting tools, marking tools, punching tools, and camera-positioning solutions for sofa and upholstered furniture manufacturers
