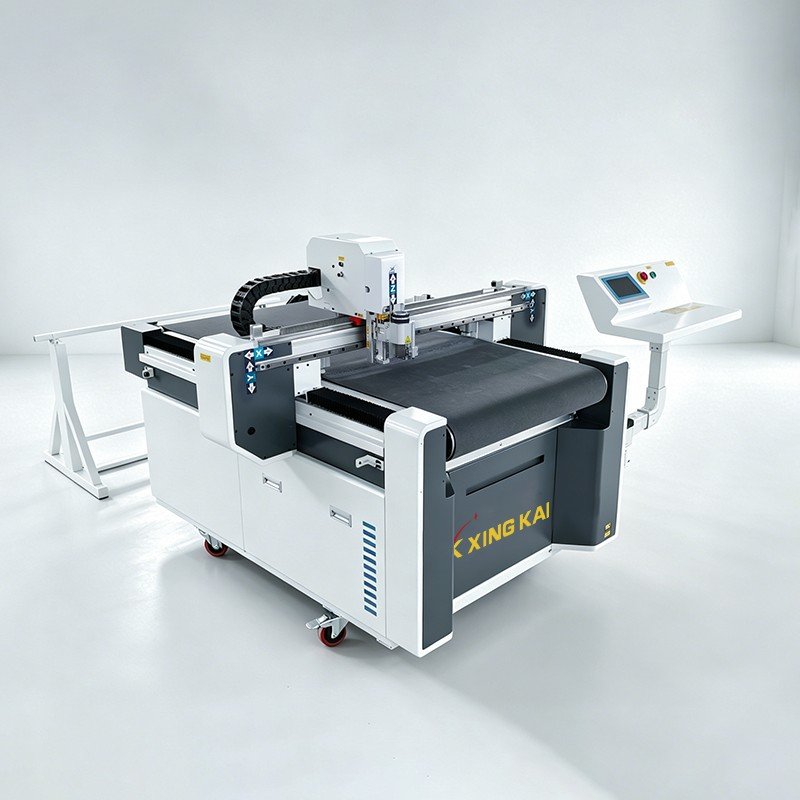

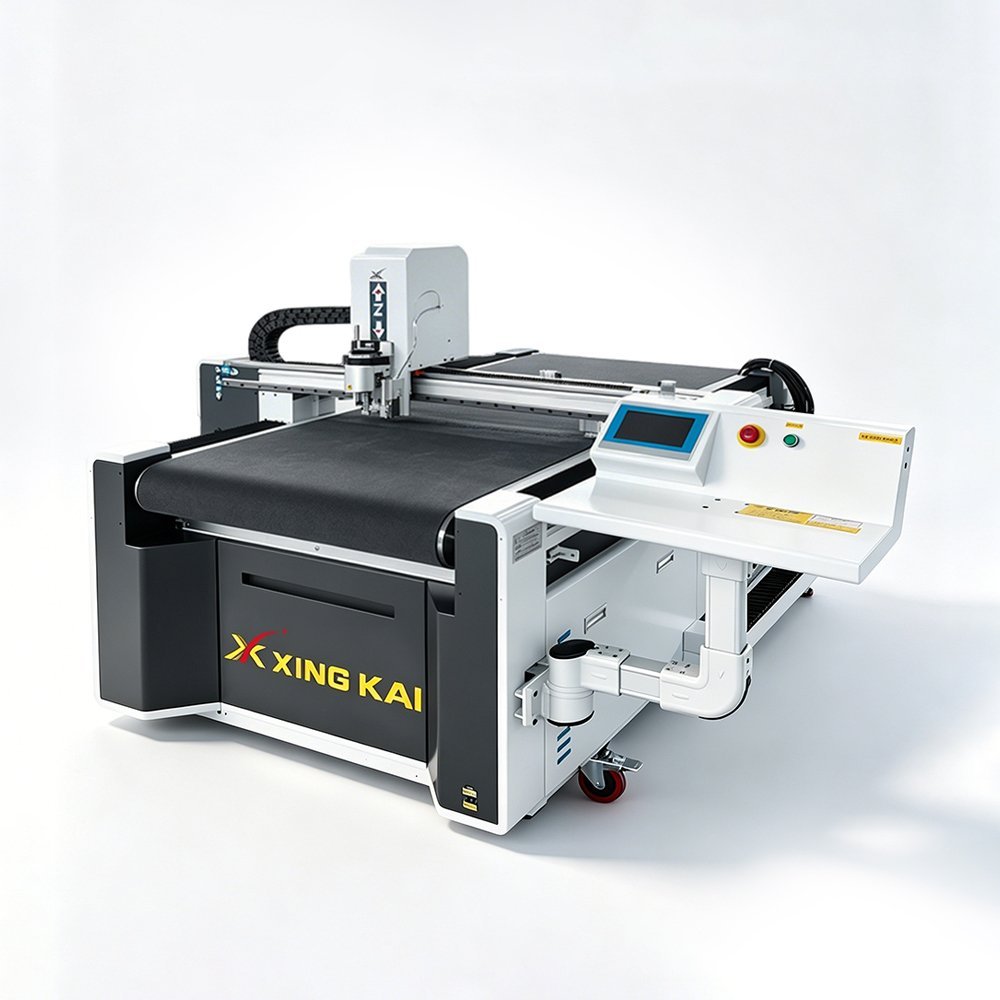

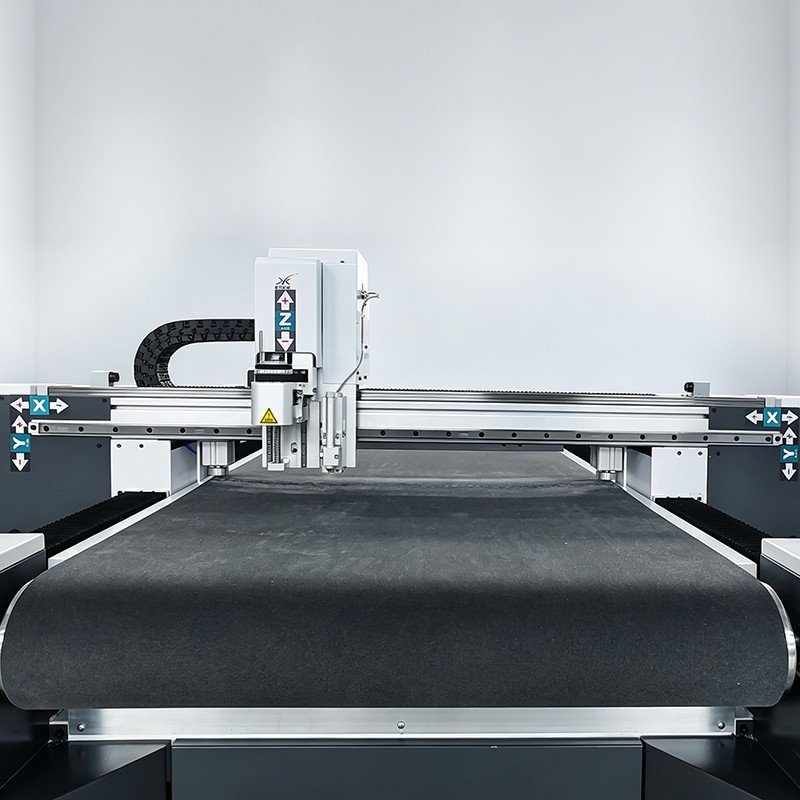

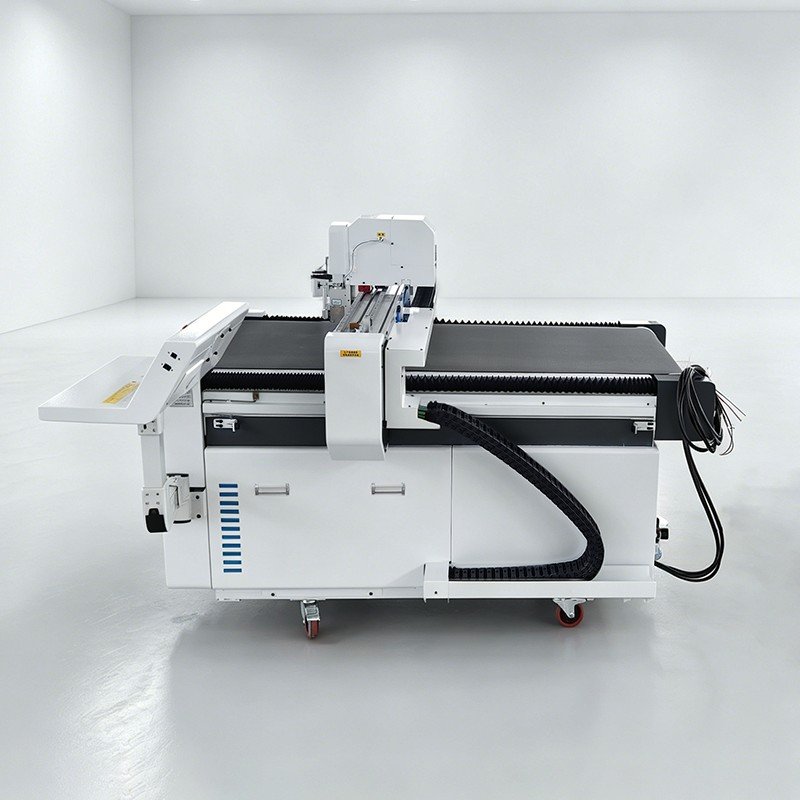

XK7010 700×1000mm Automatic CNC Oscillating Knife Waterproof Fabric and PVC Tarpaulin Cutting Machine
Brand
XINGKAI
Manufacturer
Jinan Xingkai Machinery Equipment Co., Ltd.
Working Area
1600mm × 2500mm
Rating
★★★★★ 4.8 / 5 (211 reviews)
Service
Meets CE quality and safety standards; two-year limited warranty on the entire machine.
Delivery Time
We have stock available; standard delivery time is 3–7 days. Custom orders are made according to actual needs.
Request a Quote
Xingkai PVC waterproof fabric oscillating knife cutting machines are industrial CNC systems designed for the automated cutting of PVC-coated textiles and flexible waterproof composite fabrics.
They deliver accurate cutting for PVC tarpaulin, waterproof canvas, vinyl-coated fabric, inflatable fabric, tent fabric, truck-cover material, awning fabric, rainproof covers, pool-cover material, and related flexible PVC composites.
These machines combine intelligent nesting software, a CNC control system, vacuum adsorption, automatic feeding, and oscillating knife cutting. Optional rotary, punching, and marking tools support cutting, reference marking, and process-hole production without cutting dies.
Xingkai PVC waterproof fabric cutting machines are used in tents, tarpaulins, inflatable products, truck covers, awnings, outdoor covers, industrial curtains, and customized waterproof products. They may also be called PVC tarpaulin cutters, waterproof canvas cutting machines, or digital vinyl fabric cutters.
PVC Waterproof Fabric Cutting Machine Specifications
Customizable working sizes and cutting configurations are available upon request.
| Parameter | Specification |
|---|---|
| Cutting Materials | PVC-coated fabric, PVC tarpaulin, waterproof canvas, vinyl-coated fabric, inflatable fabric, tent fabric and flexible PVC composite fabric |
| Cutting Speed | ≤1800 mm/s (actual speed depends on the material and cutting pattern) |
| Cutting Thickness | ≤20 mm, depending on material structure, density and selected blade |
| Material Fixing Method | Vacuum adsorption with reverse air blowing |
| Cutting Accuracy | ±0.1 mm |
| Compatible File Formats | DXF, HPGL |
| Working Voltage | AC 220V/380V ±10%, 50Hz |
| Transmission System | Servo motor drive and precision linear guide rails |
| Working Environment | Temperature: 5°C-35°C; Humidity: 35%-75% |
| Software Resolution | 0.025 mm |
| Operation Interface | Touchscreen |
| Vacuum Pump Power | 7.5 kW or 9 kW |
| Standard Cutting Tool | Electric oscillating knife |
| Optional Tools | Pneumatic oscillating knife, rotary tool, drag knife, punching tool and marking pen |
| Optional Functions | Automatic nesting, projection positioning, CCD camera recognition and automatic feeding |
Available Models and Dimensions
| Model | Effective Cutting Area (L x W) | Machine Dimensions (L x W) | Package Size (L x W) |
|---|---|---|---|
| 7010 | 1000 x 700 mm | 1700 x 1380 mm | 1850 x 1500 mm |
| 1615 | 1500 x 1600 mm | 2320 x 2500 mm | 2470 x 2620 mm |
| 1625 | 2500 x 1600 mm | 3350 x 2500 mm | 3500 x 2560 mm |
| 1825 | 2500 x 1800 mm | 3350 x 2700 mm | 3750 x 2290 mm |
| 1840 | 4000 x 1800 mm | 4800 x 2700 mm | 5200 x 2290 mm |
| 2025 | 2500 x 2000 mm | 3350 x 2900 mm | 1900 x 3100 mm, disassembled |
| 2030 | 3000 x 2000 mm | 3950 x 2900 mm | 2200 x 2900 mm, disassembled |
Recommended Cutting Tools
| Cutting Tool | Suitable Materials | Main Function |
|---|---|---|
| Electric Oscillating Knife | PVC-coated fabric, waterproof canvas, tarpaulin and vinyl composite fabric | Cuts straight lines, curves, holes and complex contours with controlled blade movement |
| Pneumatic Oscillating Knife | Thick, dense, multilayer or reinforced PVC fabric | Provides greater cutting force for difficult composite structures |
| Rotary Tool | Thin, soft and flexible coated textiles | Provides fast rolling cuts while reducing material pulling |
| Drag Knife | Thin PVC film and lightweight coated fabric | Provides efficient contour cutting for suitable thin materials |
| Punching Tool | Inflatable products, covers, tents and assembly components | Produces positioning holes and compatible process holes |
| Marking Pen | Sewing, welding and assembly applications | Marks reference lines, part numbers, positioning points and assembly locations |
Recommended Tool Configurations
| Application | Recommended Configuration |
|---|---|
| Standard PVC waterproof fabric | Electric Oscillating Knife |
| Thin flexible coated fabric | Rotary Tool or Drag Knife after Sample Testing |
| Thick PVC tarpaulin | Pneumatic Oscillating Knife |
| Reinforced PVC composite fabric | Pneumatic Oscillating Knife |
| Roll materials | Oscillating Knife + Automatic Feeding System |
| Tent and awning fabric | Oscillating Knife + Marking Pen |
| Inflatable product components | Oscillating Knife + Punching Tool + Marking Pen |
| Printed PVC fabric | Oscillating Knife + CCD Camera |
| Long truck-cover patterns | Oscillating Knife + Automatic Feeding System |
| Sewing or welding references | Oscillating Knife + Marking Pen |
| Customized waterproof products | Oscillating Knife + Automatic Nesting |
Optional blades and accessories
Round knife
400W high power
Camera
Marco Pen
Pneumatic knife
Vibrating knife
Punching
Why Choose a CNC PVC Waterproof Fabric Oscillating Knife Cutting Machine?
PVC waterproof fabric is flexible and may stretch, wrinkle, or move during manual cutting. Reinforcement yarns and coated surfaces also require the correct blade geometry and cutting parameters.
Traditional templates and cutting dies increase setup cost when product dimensions change. Manual marking and cutting can also create inconsistent seam allowances and matching positions.
A CNC cutting machine holds the material with vacuum adsorption and follows the imported design file. The oscillating knife cuts contours, holes, notches, and irregular shapes without thermal processing.
Automatic nesting improves the use of wide rolls, while conveyor feeding supports long covers, tent panels, and repeat production. Marking and punching tools can be added for later sewing, welding, or assembly.
Blade cutting avoids the fumes, melted edges, and heat-related deformation that may occur when laser cutting PVC-containing materials.

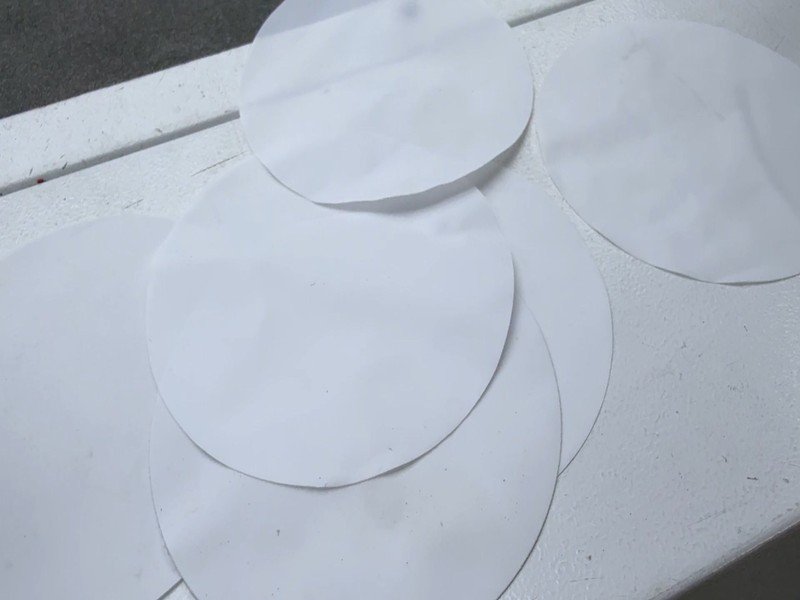

Applicable materials
PVC waterproof cloth
PVC waterproof cloth
Advantages of the High-End Industrial PVC Waterproof Fabric Cutting Machine
High-Speed Cutting
The high-speed motion control system and oscillating knife cutting technology shorten sampling and production cycles while processing different patterns continuously.
High-Precision Cutting
The machine follows imported design files to cut straight lines, curves, holes, slots, and complex contours with consistent dimensions.
Intelligent Automatic Nesting
Nesting software arranges parts according to material width, usable area, grain or fiber direction, and component shape to reduce offcuts.
No Cutting Dies Required
Cutting begins after the design file is imported. Styles, dimensions, and quantities can be changed without manufacturing new cutting dies.
Automatic Feeding
The conveyor table supports continuous feeding of PVC fabric rolls and long patterns while reducing repeated manual loading.
Reduced Labor Costs
Automatic nesting, material positioning, feeding, marking, and cutting reduce repetitive manual work and dependence on skilled hand cutting.
Clean Cutting Edges
Cold blade cutting produces no cutting heat, burnt edges, melted coating, or laser smoke and maintains a natural edge for sewing or welding.
Suitable for Relevant Material Variants
The machine processes PVC tarpaulin, waterproof canvas, inflatable fabric, tent fabric, truck-cover material, awning fabric, and related coated textiles.
Supports Multiple Production Methods
The machine supports prototypes, customized orders, multiple sizes, small batches, and continuous production from saved digital files.
Fast Product Changeover
Operators can switch products by loading another design file and selecting the stored tool parameters, reducing setup time between orders.
Stable and Reliable Operation
Precision racks, industrial linear guide rails, servo drives, and a reliable CNC system provide smooth movement and long-term production stability.
Machine details and key components
Fan equipment
Multilingual operating system
Oil pump
Rack
Multiple blade combinations
Servo driver
Felt
Aviation aluminum honeycomb panel
Key Features of the Xingkai PVC Waterproof Fabric Oscillating Knife Cutting Machine
Heavy-Duty Machine Frame
The high-strength welded frame is precision-machined and stress-relieved for rigidity, stability, and long-term cutting accuracy.
Intelligent CNC Control System
The industrial touchscreen provides reliable control of files, tools, cutting paths, feeding, and processing parameters.
Powerful Vacuum Adsorption
The vacuum table holds flexible coated fabric flat and limits shifting, wrinkling, and stretching during cutting.
High-Precision Drive System
Precision gear racks and industrial linear guide rails ensure fast, smooth movement and accurate cutting of straight lines, curves, holes, and irregular contours.
Oscillating Knife Cutting
High-frequency blade movement cuts coated textiles mechanically without heat, dies, or laser fumes.
Automatic Feeding System
The conveyor table feeds roll materials continuously and supports long panels and repeat batch production.
Punching and Marking Options
Optional tools create compatible process holes, seam references, part numbers, and assembly marks in the same workflow.
Multiple Tool Configuration
Electric or pneumatic oscillating knives, rotary tools, drag knives, punching tools, and marking pens can be selected according to the coating, reinforcement, and process.
Stable and Reliable Operation
The modular structure and automatic lubrication system reduce maintenance requirements and support long-term continuous production.
PVC waterproof fabric cutting machines should be configured according to coating thickness, textile reinforcement, flexibility, roll width, and downstream sewing or welding process. An electric oscillating knife is the main tool for common PVC-coated fabrics. A pneumatic oscillating knife is recommended for thick, dense, or reinforced composites.
A rotary tool can reduce pulling on selected thin and flexible textiles, while a drag knife is suitable only for compatible lightweight materials. Punching and marking tools may be added for positioning holes, seam references, part numbers, and assembly marks.
If you are unsure which tool to choose, provide the material structure, thickness, roll width, maximum pattern size, required holes or marks, and daily output. Testing with the actual material is recommended.
Why Choose an Oscillating Knife Cutter Instead of a Laser Cutting Machine for PVC Waterproof Fabric?
Laser cutting uses heat to melt or burn through material. When processing PVC-containing fabrics, thermal cutting can produce melted edges, discoloration, smoke, and potentially corrosive or hazardous fumes, so it requires strict material verification and extraction.
An oscillating knife cuts mechanically without heat. It preserves the coated surface and produces clean edges suitable for sewing, high-frequency welding, hot-air welding, or assembly.
Compared with manual cutting, the Xingkai digital system combines automatic nesting, vacuum adsorption, roll feeding, marking, punching, and cutting to improve repeatability and material utilization.
For PVC tarpaulins, tents, inflatable products, truck covers, awnings, and industrial curtains, oscillating knife cutting is generally the cleaner and more practical production method.
Who Should Buy a Xingkai Digital PVC Waterproof Fabric Cutting Machine?
Tarpaulin and Cover Manufacturers
Cuts truck covers, equipment covers, rainproof covers, pool covers, and industrial protective covers.
Tent and Awning Manufacturers
Processes tent panels, awning fabric, side curtains, canopies, and related waterproof components.
Inflatable Product Manufacturers
Cuts inflatable structures, advertising inflatables, recreational products, and sealed-air components.
Outdoor Product Manufacturers
Produces waterproof bags, shelters, protective products, and weather-resistant fabric components.
Industrial Curtain Manufacturers
Cuts flexible partitions, welding curtains, workshop curtains, and enclosure materials.
Advertising Product Manufacturers
Processes printed banners, vinyl fabric, display skins, and large-format flexible graphics.
Customized Product Manufacturers
Supports prototypes, replacement panels, personalized products, and frequently changing sizes.
Recognition from customers
How to Choose a Xingkai PVC Waterproof Fabric Cutting Machine
For common PVC-coated fabric and waterproof canvas, use an electric oscillating knife with vacuum adsorption.
For thick, dense, or reinforced tarpaulin, select a pneumatic oscillating knife with the blade confirmed by sample testing.
For thin, soft material that tends to pull, evaluate a rotary tool. Use a drag knife only for compatible lightweight PVC film or coated fabric.
For roll materials, long covers, tents, and batch production, select a conveyor table with automatic feeding.
Add punching and marking tools when parts require holes, seam lines, welding references, part numbers, or assembly positions. Add CCD recognition for printed material.
Machine configuration should be based on material structure, thickness, reinforcement, roll width, pattern length, required processes, and daily output.
Frequently Asked Questions
What PVC waterproof fabrics can the machine cut?
It can cut PVC tarpaulin, waterproof canvas, vinyl-coated textile, inflatable fabric, tent fabric, truck-cover material, awning fabric, and related flexible PVC composites.
Because coating, reinforcement, and flexibility differ, customers should provide samples for tool confirmation.
What is the maximum cutting thickness?
The machine can process suitable PVC waterproof fabrics up to 20 mm thick.
Actual capacity depends on reinforcement, density, hardness, layer count, blade length, and edge-quality requirements.
Which knife is recommended for PVC tarpaulin?
An electric oscillating knife is suitable for common PVC tarpaulin, while a pneumatic oscillating knife provides greater force for thick or reinforced material.
The blade type and speed should be confirmed using the actual material.
Can the machine process roll material continuously?
Yes. A conveyor table with automatic feeding supports continuous processing of compatible PVC fabric rolls.
The feeding system should be selected according to roll width, weight, tension, and maximum pattern length.
Does cutting produce smoke or melted edges?
No. Oscillating knife cutting is a cold mechanical process and does not melt the PVC coating.
A small amount of fiber or coating debris may occur and should be removed through regular cleaning.
How is flexible fabric held during cutting?
The vacuum adsorption table holds the material flat and reduces movement and wrinkles.
Vacuum zones and covering methods can be adjusted according to permeability and table coverage.
Can the machine cut multiple layers?
Small-batch multilayer cutting may be possible for compatible, stable materials.
The result depends on total compressed thickness, interlayer movement, surface friction, and accuracy requirements.
Which design files are supported?
The system supports DXF and PLT and works with compatible CAD and nesting software.
Imported designs can be nested and converted into cutting paths automatically.
Does the machine require cutting dies?
No. Designs and dimensions can be changed digitally without producing new dies.
This supports prototypes, custom sizes, short runs, and high-mix production.
Can the machine mark and punch the material?
Yes. Optional marking and punching tools can create reference lines, part numbers, positioning points, and compatible holes.
Required hole size and mark visibility should be tested on the actual fabric.
How often should the blade be replaced?
Blade life depends on coating hardness, reinforcement yarn, thickness, speed, pattern complexity, and daily operating time.
Replace the blade when edges become rough, fibers pull, corners lose accuracy, or cutting is incomplete.
Can I test my material before purchasing?
Yes. Customers can send PVC waterproof fabric samples and cutting drawings to Xingkai for testing.
We can provide cutting videos and finished sample results.
To recommend the correct configuration, please provide:
Material | Thickness | Roll Width | Cutting Size | Required Holes or Marks | Daily Production
